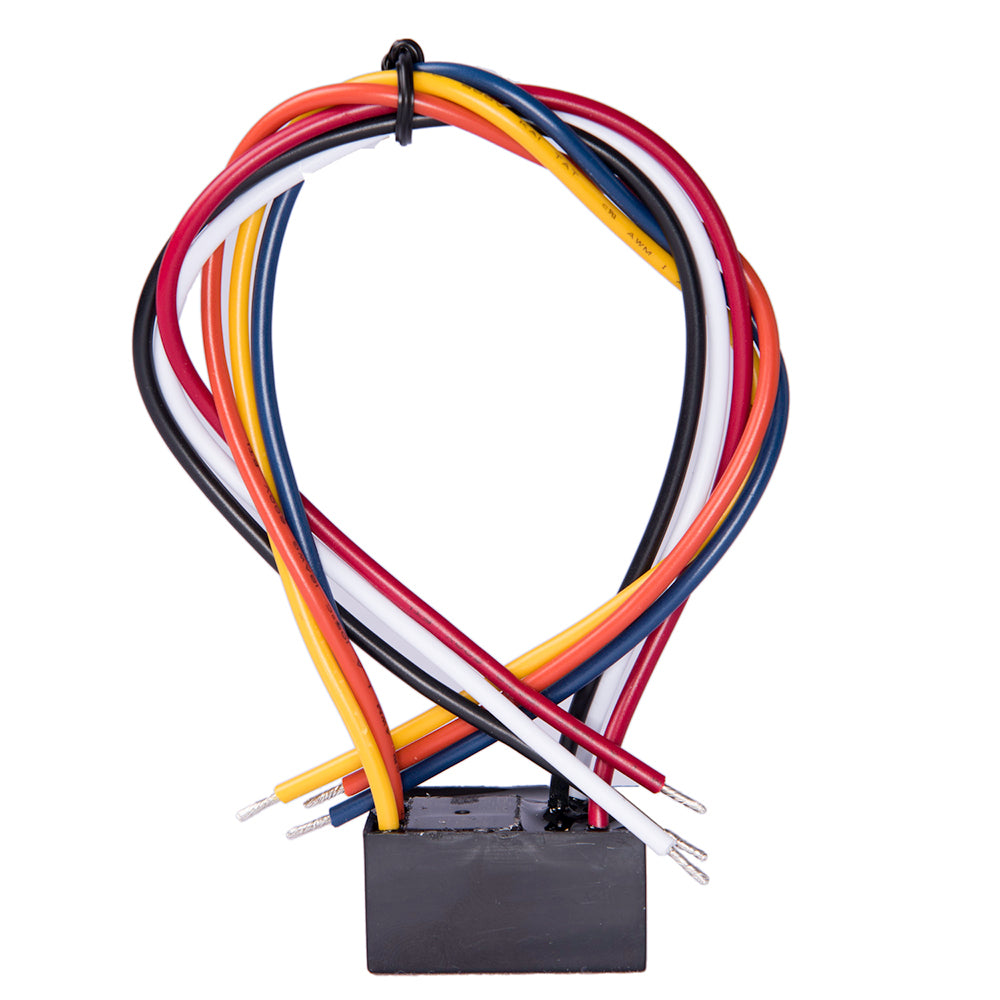

Siren Marine PAM4 Wired DC Relay [SM-ACC-DCRE]

PAM4 Wired DC Relay

The Siren Marine DC Accessory Relay allows users to control any 12v onboard devices, such as A/C, deck or spreader lights, sirens, or strobe lights.

• Dimensions: 1.5x0.75x1.19in (box) 11.3in (wire)
• Relay may be energized across a wide voltage range from 9VDC to 32VDC.
• Ideal for 12VDC and 24VDC circuits.
• 20mA operating current is constant across the operating range.
• Input voltages are polarity-sensitive and diode-protected.
• Relay is required to power or switch 12V systems that draw more than 1 Amp via the internal outputs of the MTC.
• Works with MTC and Siren 3 Pro
