Boat Propeller Buying Guide: Pitch, Diameter, Aluminum vs. Stainless

By Boat Supplies Direct·Updated Oct 18, 2026·6 min read

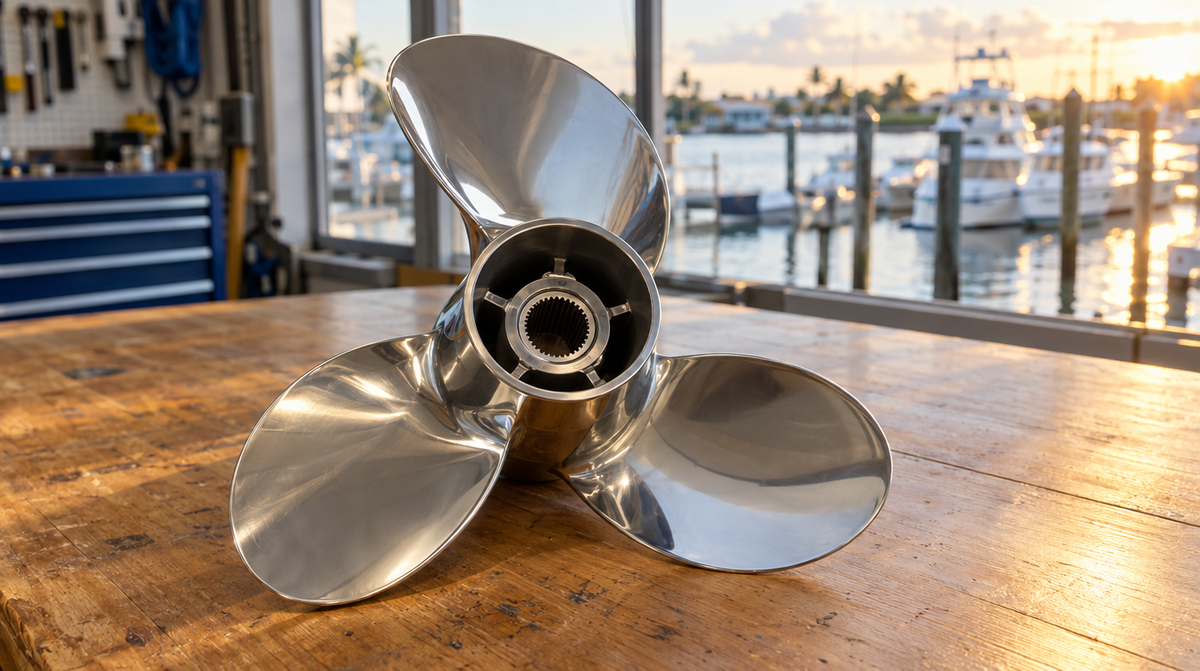

Stainless steel three-blade outboard propeller on a workbench

Quick answer: The right propeller lets your engine reach the top of its rated wide-open-throttle (WOT) RPM range with a normal load. If you are below that range, drop pitch. If you hit the rev limiter, add pitch. Each inch of pitch changes engine speed by roughly 200 RPM. Choose aluminum for value and shallow water, and stainless steel for speed, durability and better hole shot on bigger engines.

Your prop is the single part that turns horsepower into motion. The wrong one can make a strong engine feel weak, burn extra fuel, or over-rev and wear the powerhead. The right one gets you on plane faster, cruises more efficiently, and keeps the engine in the range it was designed for. This guide explains the numbers on a prop, how to pick pitch, and when to step up to stainless.

Step 1: Read the numbers on your current prop

Every prop is stamped with two numbers, for example 14 x 21.

Diameter (14): the width of the circle the blade tips make, in inches. Diameter is mostly set by your engine's gearcase and horsepower, so you usually stay close to the original.
Pitch (21): how far, in theory, the prop moves forward in one turn, in inches. Pitch is the number you change to tune performance.

You also need the rotation (right hand is standard, left hand is for the second engine on many twin setups) and the hub or spline that fits your engine model.

Step 2: Check your WOT RPM

Look up your engine's recommended wide-open-throttle range in the owner's manual. Then run the boat with a typical load, trimmed for best speed, and note the RPM at full throttle.

What you see at WOT	What it means	What to do
Below the rated range	Prop is "over-pitched," the engine is lugging	Go down in pitch
Inside the upper half of the range	Correctly propped	Keep it
Hitting the rev limiter	Prop is "under-pitched"	Go up in pitch

The rule of thumb: each inch of pitch is worth about 200 RPM. Going from a 23 to a 21 pitch adds roughly 400 RPM. Running below the rated range is hard on an engine, so it is better to err slightly low on pitch than high.

Step 3: Aluminum or stainless steel?

	Aluminum	Stainless steel
Cost	Low	3 to 4 times more
Performance	Good	Thinner, stiffer blades, often more speed and better hole shot
Durability	Bends and dings easily, repairable	Very tough, holds shape
Strike protection	Prop takes the hit	Lower unit can take more of the hit
Best for	Shallow water, rentals, smaller engines, a spare	Larger outboards, performance, heavier boats

Many owners run stainless and carry an aluminum spare in the boat.

Step 4: 3-blade or 4-blade?

3-blade: the standard. Usually the best top speed and efficiency.
4-blade: more grip. Better hole shot, smoother ride, better hold in rough water and on boats that ride high on a jack plate. Often a little less top speed.

When switching from 3 to 4 blades, many boaters drop about an inch of pitch to keep RPM in range.

Step 5: Match the prop to how you use the boat

Heavy loads, tubing, skiing: lower pitch for faster acceleration.
Light loads, running long distances: pitch toward the top of the range for cruise efficiency.
Bay boats and flats boats: a 4-blade often helps hold in turns and shallow running.

Step 6: Install and maintain it

Grease the shaft splines with marine grease every time the prop comes off.
Use a new cotter pin or tab washer and torque the nut to the engine maker's spec.
Check for fishing line behind the prop. It can cut the seal and let water into the gearcase.
Inspect blades for nicks and bends after any strike. Even small damage causes vibration.

Common propeller mistakes to avoid

Testing with an empty boat. Prop for the load you actually carry. A prop that hits the rev limiter with one person may be perfect with a full crew and fuel.
Trusting the tachometer blindly. Dash tachs can read off. Compare against the engine's own diagnostic reading or a handheld tach if the numbers look strange.
Ignoring a spun hub. If RPM climbs but the boat does not speed up, the rubber or plastic hub insert may have slipped. That is a hub repair, not a pitch problem.
Running a bent blade. Even a small bend causes vibration that can damage seals and bearings in the gearcase over time.
Forgetting a spare. An inexpensive aluminum spare and the tools to change it can save a trip.

Our picks

All in stock at Boat Supplies Direct. Confirm diameter, pitch, rotation and hub fit for your engine before ordering.

Frequently Asked Questions

How do I know what pitch prop I need?

Run the boat at wide open throttle with a normal load and compare the RPM to your engine's rated range. Go down in pitch if you are below the range and up if you hit the rev limiter. Each inch of pitch changes RPM by about 200.

Is a stainless steel prop worth it?

For mid and larger outboards, usually yes. Stainless blades flex less, often add speed and hole shot, and last far longer. Aluminum is cheaper and better for shallow water and as a spare.

What does 14 x 21 mean on a propeller?

The first number is diameter in inches, and the second is pitch in inches, the theoretical distance the boat moves in one prop revolution.

Will a 4-blade prop make my boat faster?

Usually not at top end. A 4-blade improves hole shot, holding in turns and rough water performance, sometimes at a small cost in top speed.

What happens if my prop pitch is too high?

The engine cannot reach its rated RPM, so it lugs, runs hotter, accelerates poorly and can suffer long-term damage.

How do I know if my prop fits my engine?

Match the diameter range, rotation and hub or spline system to your engine make and horsepower. The prop maker's application chart or your engine manual lists what fits.

This guide is general information. Always follow your engine manufacturer's propping recommendations and WOT RPM range.
