Fuel Filter and Water Separator Buying Guide: Micron, Flow and Maintenance

By Boat Supplies Direct·Updated Oct 18, 2026·5 min read

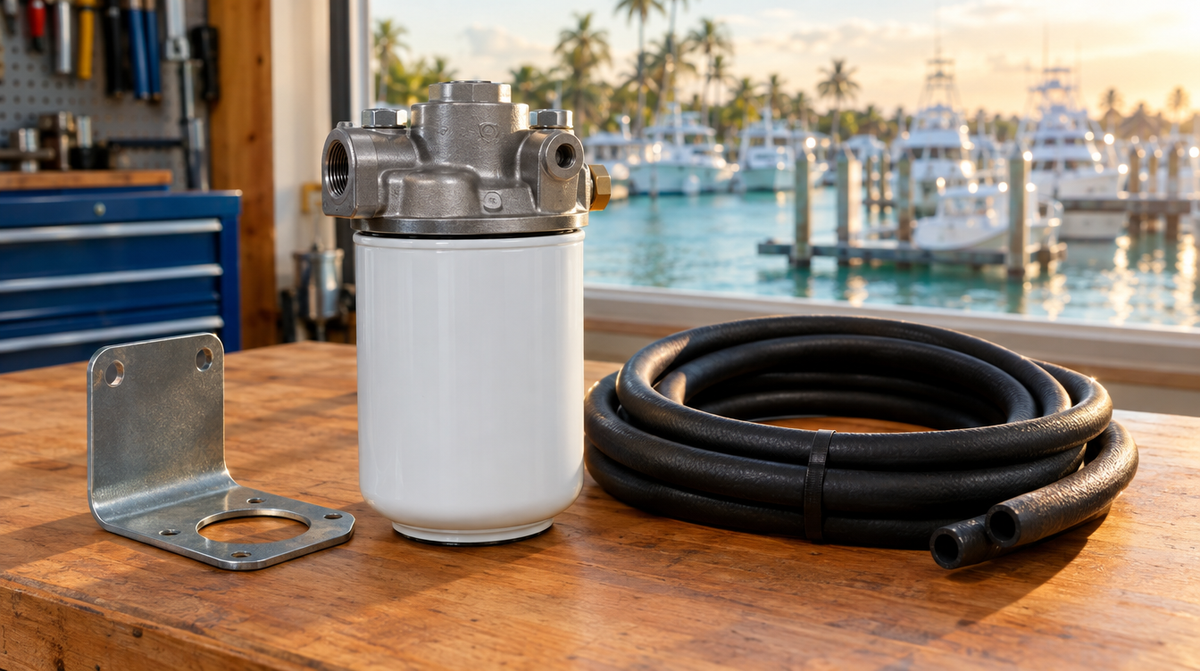

Marine fuel water separating filter with bracket and fuel hose on a workbench

Quick answer: Put a water separating fuel filter between your tank and engine, rated for more flow than your engine burns at wide open throttle. For gasoline outboards, most engine makers recommend a 10 micron water separator. Diesels usually run a coarser primary (often 30 or 10 micron) and a fine secondary on the engine. Change elements at least once a season and drain water from the bowl whenever you see it.

Water and dirt in fuel are behind a huge share of marine engine trouble. Tanks breathe humid air through their vents, condensation forms inside, ethanol in gasoline pulls in moisture, and debris settles in the bottom of old tanks. Modern fuel-injected engines have tight tolerances, so a little water or grit can mean rough running, stalls or expensive injector damage. A good fuel filter and water separator is the cheapest protection your engine can get.

Step 1: Know your filter stages

Stage	Where it sits	Typical rating	Job
Primary water separator	Between tank and engine, usually on the transom or stringer	10 micron for most gas outboards, 10 to 30 micron for diesel primaries	Separates water and catches most debris
On-engine filter	On or inside the engine	Finer, set by the engine maker	Final protection before the fuel pump and injectors
Inline filter	In a portable tank fuel line	Varies	Basic debris catch on small outboards

Always follow your engine maker's micron and flow specs. Going finer than recommended on a primary can clog quickly and starve the engine.

Step 2: Size for flow

The filter must flow more fuel than your engine burns at full throttle, with margin for a partly dirty element. A high-horsepower outboard can burn well over 20 gallons per hour at wide open throttle. Check the filter's GPH rating against your engine's fuel demand, and on multi-engine boats give each engine its own separator.

Step 3: Choose features that make it easy

Clear bowl: lets you see water and debris at a glance. In engine compartments, use one rated for that location, often with a metal heat shield.
Drain valve: lets you drain water without removing the filter.
Spin-on element: quick to change with no mess.
Mounting bracket: keeps it secure and accessible.

Step 4: Install it right

Mount the separator where you can see the bowl and reach the element.
Use USCG-rated fuel hose and fittings, and match hose size to the engine's fuel line.
Follow the flow arrow on the filter head.
Use stainless hose clamps, and double-clamp where space allows.
Prime the system and check for leaks before starting.

Step 5: Maintain it

Check the bowl before each trip and drain any water.
Replace the element at least once a season, or sooner if you see water or debris often.
Carry a spare element and the wrench to change it.
Treat your fuel to reduce water and gum in the first place. Our fuel additive guide covers what to use.

If you find lots of water repeatedly, look for the source: a loose fill cap O-ring, a deck fill below the waterline in rough water, or a tank vent that lets rain in.

Common fuel filter mistakes

Never changing the element. A clogged filter starves the engine at high RPM and can look like a fuel pump problem.
Undersized filter. A small separator on a big engine restricts flow at wide open throttle.
Mounting it where you cannot see it. If you cannot see the bowl, you will not notice water until the engine stumbles.
Using non-marine fittings. Brass hardware-store fittings and automotive hose can leak and fail marine fire tests.
Not carrying a spare. A bad tank of fuel can clog an element in one trip. A spare and a wrench get you home.

After changing an element, fill the new one with clean fuel if the maker allows, prime the system with the primer bulb or key-on pump, and check every connection for weeping before you leave the dock.

Before you order: quick checklist

Engine maker's recommended micron rating and minimum flow.
Fuel line size and fitting type at the filter head.
Where it will mount and whether it is inside the engine compartment.
One separator per engine on twin or triple installs.
A spare element and the right filter wrench.

Our picks

All in stock at Boat Supplies Direct.

Complete water separator kit

Attwood Universal Fuel/Water Separator Kit with Bracket. Includes the head, bracket and element for a clean transom install.

Frequently Asked Questions

What micron fuel filter do I need for my outboard?

Most gasoline outboard makers recommend a 10 micron water separating filter between the tank and the engine. Check your engine manual for the exact spec.

Why do I need a water separator on a boat?

Boat fuel collects water from condensation, humid air and ethanol blends. A separator stops that water before it reaches the fuel pump and injectors.

How often should I change my boat fuel filter?

At least once a season, and sooner if the bowl shows water or debris regularly. Drain water any time you see it.

Where should a fuel water separator be mounted?

Between the tank and the engine, where you can see the bowl and reach the element, typically on the transom or a stringer.

What size fuel water separator do I need?

One with a flow rating higher than your engine's full throttle fuel burn and fittings that match your fuel line size. Use one separator per engine.

Can I use a car fuel filter on my boat?

No. Use marine-rated filters and USCG-rated fuel hose and fittings. Automotive parts may not meet marine fire and leak requirements.

This guide is general information. Always follow your engine manufacturer's fuel system specifications and use a qualified marine technician for fuel system work.
