Jack Plate Buying Guide: Hydraulic vs. Manual and How Much Setback
Quick answer: A jack plate moves your outboard back (setback) and lets you raise it so less of the lower unit drags in the water. Choose hydraulic if you want to adjust height on the fly for shallow water and hole shot, or a manual plate if you set it once. Pick the setback that suits your hull (common sizes run 4 to 14 inches), use a heavy-duty plate for big, heavy outboards, and add a water pressure gauge so you never raise the engine too high to cool.
Jack plates are standard on bass boats and popular on bay boats, flats skiffs and many center consoles. Set up right, they add speed, improve hole shot and let you run in shallower water. Set up wrong, they cause blowouts, porpoising and overheating. This guide explains what a jack plate does and how to choose one.
Step 1: Know what a jack plate does

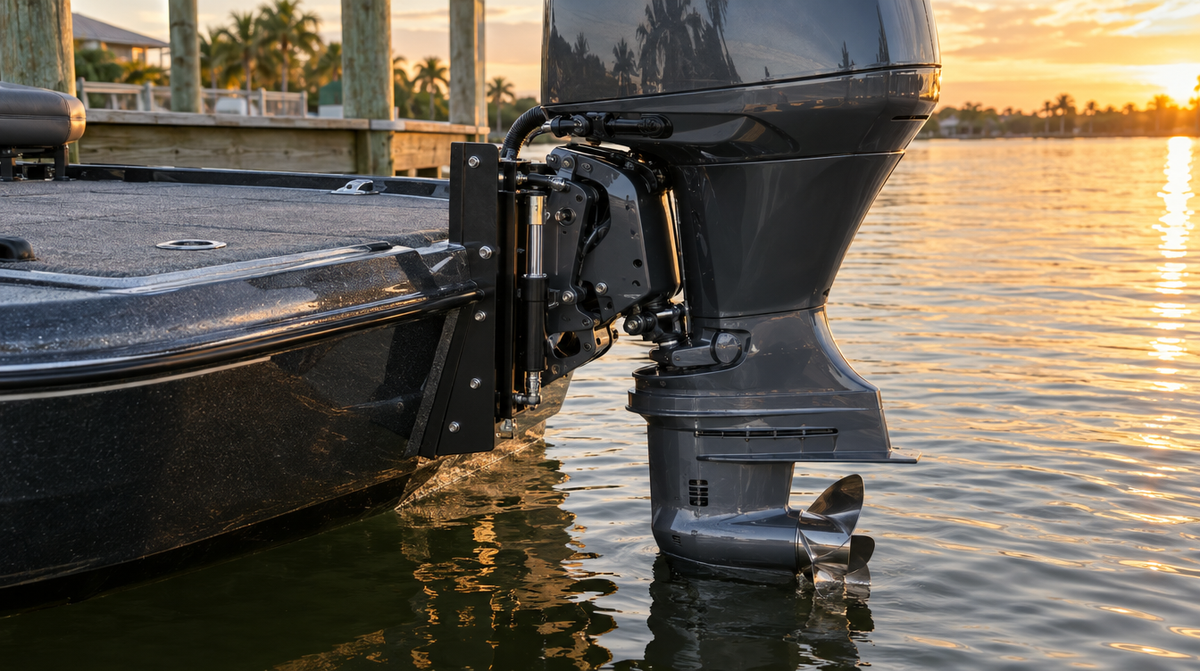

- Setback: moves the engine aft of the transom. The prop runs in cleaner, less turbulent water, which allows mounting the engine higher.
- Height adjustment: raising the engine reduces drag from the lower unit for more speed, and lets you run and get on plane in shallow water.
- Hole shot tuning: lowering the engine gives more bite for getting on plane, then you raise it once running.
Who needs a jack plate? Bass boats nearly always run one, and they are common on flats skiffs, bay boats and shallow-water center consoles. Boats that never run shallow and are happy with their speed and hole shot may not need one. If your engine already sits at the right height and the boat performs well, a jack plate is an upgrade, not a requirement.
Step 2: Hydraulic or manual?
| Hydraulic | Manual | |
|---|---|---|
| Adjust height | At the helm, while running | Set at the dock with tools |
| Best for | Shallow water, tournament fishing, performance tuning | Set-and-forget setback on budget builds |
| Cost | Higher | Lower |
| Extras | Needs a switch and a power circuit | None |
Step 3: Choose setback
| Setback | Typical use |
|---|---|
| 4 to 6 inches | Smaller boats, modest gains, bay and flats boats |
| 8 to 10 inches | Common for bass boats and performance-oriented hulls |
| 12 to 14 inches | High-performance hulls built for large setback |
More setback is not automatically better. It adds leverage on the transom and can make some hulls porpoise. Check with your boat or engine maker for what your hull is designed to handle.
Step 4: Match the plate to the engine
- Check the plate's weight and horsepower rating. Heavy V8 and supercharged outboards usually need a heavy-duty plate.
- Confirm the bolt pattern and that the engine can still tilt fully without hitting the transom or plate.
- Make sure steering cables or hoses, control cables and wiring have enough slack for the added setback and height travel.
Step 5: Set it up safely
- Install a water pressure gauge. If you raise the engine too high, the water pickup can starve and the engine overheats. Watch pressure as you raise it.
- Start low, then raise in small steps while watching speed, RPM and pressure.
- If the prop blows out (sudden RPM spike) in turns, come down a little.
- A hole shot plate (a small fin on the jack plate) can help some boats get on plane faster.
Step 6: Maintain it
- Inspect bolts and transom mounting for cracks or movement each season.
- Check hydraulic lines and the actuator for leaks.
- Rinse with fresh water after saltwater use.
Common jack plate mistakes
- Going too high too fast. Raise the engine in small steps. A big jump can cause blowouts or starve the water pickup.
- No water pressure gauge. Without one, you are guessing whether the engine is getting enough cooling water.
- Forgetting the cables. Setback and lift add length. Steering, control cables and wiring need enough slack for full travel.
- Exceeding ratings. Heavy engines on a light-duty plate put dangerous stress on the plate and transom.
- Loose bolts. Jack plates see big loads. Check bolt torque after the first few runs and every season.
Our picks
All in stock at Boat Supplies Direct.
Manual jack plates
T-H Marine Z-Lock 4 inch Setback Manual Jack Plate or the Z-Lock 6 inch Setback.
Hydraulic jack plates
T-H Marine ATLAS 6 inch Hydraulic Jack Plate, the ATLAS 8 inch, or the ATLAS 10 inch.
Heavy-duty for big outboards
T-H Marine ATLAS 10 inch Heavy-Duty or the ATLAS 12 inch Heavy-Duty.
Hole shot plates and hardware
T-H Marine 6 inch Hole Shot Plate for Z-Lock and the T-H Marine Jack Plate Bolt Kit.
Frequently Asked Questions
What does a jack plate do on a boat?
It moves the outboard back from the transom and lets you raise or lower it, which can add speed, improve hole shot and allow running in shallower water.
Is a hydraulic jack plate worth it?
If you run shallow water or want to tune performance while underway, yes. A manual plate is fine if you set the height once and leave it.
How much setback do I need on a jack plate?
It depends on the hull. Smaller boats often use 4 to 6 inches, and many bass boats use 8 to 10. Check what your boat and engine makers recommend.
Can a jack plate cause overheating?
Yes, if the engine is raised too high and the water intake starves. Install a water pressure gauge and watch it as you raise the motor.
Why does my prop blow out after installing a jack plate?
The engine is probably set too high, letting the prop draw air. Lower it in small steps until it holds through turns.
Do I need a heavy-duty jack plate?
For heavy, high-horsepower outboards, usually yes. Always stay within the plate's weight and horsepower ratings.
This guide is general information. Jack plate installation affects transom loads and engine cooling, so follow the manufacturer's instructions and your boat builder's recommendations.
