Marine Battery Box and Tray Buying Guide: Secure Your Batteries the Right Way
Quick answer: Every boat battery needs to be held down so it cannot shift (ABYC guidance is no more than about 1 inch of movement under a hard pull) and have its positive terminal covered so nothing metal can short it. Use a battery box or a tray with a hold-down strap sized to your battery's group size (24, 27 or 31), mounted to a solid surface, and use boxes with lids for flooded batteries to contain spills.
A loose battery is one of the most dangerous things on a boat. In rough water a 50 to 70 pound battery can slide, crack, short its terminals against a fuel tank or bulkhead, and start a fire. Securing it properly costs very little. This guide covers trays versus boxes, how to size them, how to mount them and the terminal protection you need.
Step 1: Know your battery's group size
The group size printed on the battery label defines its footprint. Trays and boxes are sold to match.
| Group size | Common use | Box or tray to buy |
|---|---|---|
| Group 24 | Small boats, starting, trolling | 24 series tray or box |
| Group 27 | Most deep cycle and dual purpose | 27 series tray or box |
| Group 31 | Larger starting and house batteries | 31 series tray or box |
| 4D / 8D | Large cruisers and diesels | Heavy-duty custom tray or rack |
Many trays are adjustable across a range of sizes. Check the battery's actual dimensions if you are switching to lithium, since some lithium batteries use different cases.
Step 2: Choose a box or a tray

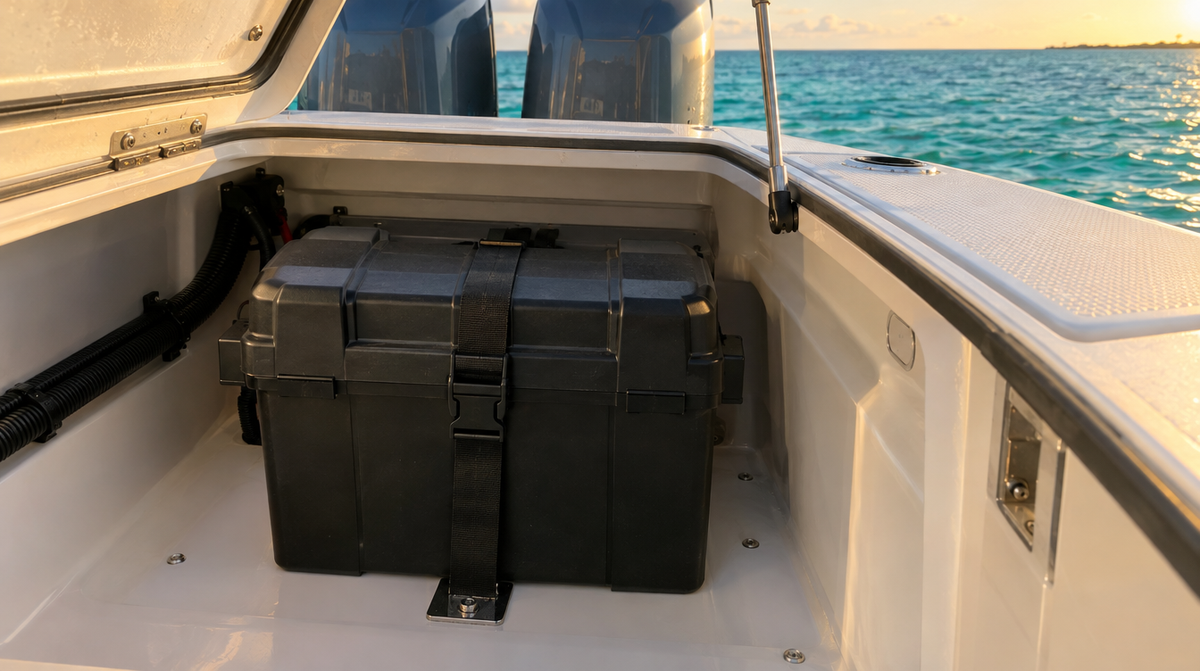

- Battery box with lid and strap: fully encloses the battery, covers the terminals and contains acid spills. The best choice for flooded batteries and open compartments.
- Battery tray with hold-down: a base with a strap or clamp. Lighter and more compact, good for sealed AGM and lithium batteries in dedicated compartments, as long as the terminals are covered separately.
Step 3: Mount it solidly
- Mount on a flat, solid surface, not on a thin hatch floor.
- Use through-bolts or stainless screws into solid backing.
- Run the strap fully around the box or battery and cinch it tight.
- Push and pull the battery hard. It should not slide, tip or lift.
Keep batteries away from fuel tanks, fuel lines and anything that sparks, and protect them from bilge water.
Step 4: Cover the terminals
An exposed positive terminal can short against a wrench, a fuel tank or a loose tool and weld itself in a shower of sparks. Use a box lid, terminal boots or covered terminals on every positive connection. Use proper marine battery terminals and tinned lugs, as covered in our wire and terminal guide.
Step 5: Ventilate where needed
Flooded lead-acid batteries release hydrogen while charging. Keep their compartment ventilated and use vented battery boxes. Sealed AGM and lithium batteries do not vent in normal use, but still need to be secured.
Step 6: Inspect regularly
- Check straps for cracks, sun damage and slack.
- Look for corrosion on terminals and the tray.
- Make sure covers are still in place after any battery work.
Common mistakes to avoid
- Using bungee cords as hold-downs. They stretch and do not hold a heavy battery in rough water.
- Mounting to a thin hatch floor. Screws pull out of thin fiberglass. Use solid backing or through-bolts.
- Leaving the positive terminal bare. A dropped wrench across an exposed terminal can cause a dangerous short.
- Placing batteries near fuel. Keep batteries away from fuel tanks, filters and lines.
- Forgetting the strap after battery work. Always re-secure the battery and replace covers before you leave the dock.
Quick checklist
- Battery group size confirmed from the label
- Box or tray that matches it, with a strap or clamp
- Solid mounting surface and stainless hardware or through-bolts
- Terminal boots or a lid covering every positive terminal
- Vented box and ventilated compartment for flooded batteries
- Clearance from fuel tanks, fuel lines and bilge water
- A final push and pull test: the battery should not slide, tip or lift
Our picks
All in stock at Boat Supplies Direct.
Adjustable trays
Attwood Heavy-Duty Adjustable Battery Tray, 27 Series, the 24 Series version, or the Attwood Low Profile Group 27 Tray for tight spaces.
Trays with straps or clamps
Sea-Dog Battery Tray with Straps, 24 Series or the Sea-Dog Tray with Clamp, 27 Series.
Hold-down straps
Sea-Dog Heavy Duty Battery Box Strap, 48 in, the Sea-Dog Strap and Brackets, 54 in, or the BoatBuckle Battery Box Tie-Down.
Terminals and terminal-mount fusing
Ancor Battery Terminal Combo and the Blue Sea Battery Terminal Mount Fuse Block Kit.
Frequently Asked Questions
Does a boat battery have to be in a box?
Not always, but it must be secured so it cannot move and its positive terminal must be covered. A box does both and contains spills, which is why it is the most common choice for flooded batteries.
How secure does a boat battery need to be?
ABYC guidance calls for the battery to move no more than about 1 inch when pulled hard in any direction. If you can slide or tip it by hand, it is not secure.
What size battery box do I need?
Match the battery's group size, usually 24, 27 or 31, printed on the label. Measure lithium batteries, since some use different case sizes.
Can I use a battery tray instead of a box?
Yes, for sealed AGM or lithium batteries in a protected compartment, as long as the battery is strapped down and the terminals are covered.
Why do battery terminals need to be covered on a boat?
An exposed positive terminal can short against tools, fuel tanks or metal parts, causing sparks, fire or a dead battery.
Do battery boxes need ventilation?
Flooded batteries do, because they vent hydrogen while charging. Use a vented box and keep the compartment ventilated.
This guide is general information. Follow ABYC standards and your battery manufacturer's instructions, and consult a qualified marine electrician for permanent installations.
