Marine Fuse and Circuit Breaker Buying Guide: Sizing and Placement
Quick answer: A fuse or breaker exists to protect the wire, not the device. Size it at or just above the circuit's normal draw and never above the wire's rated capacity, and install it as close to the power source as possible (ABYC calls for within 7 inches, or up to 72 inches if the cable is sheathed). Use blade fuses or breakers for branch circuits, and high-capacity MRBF, ANL or Class T fuses for battery cables.
Every boat fire caused by wiring starts the same way: too much current through a wire that was not protected properly. The insulation melts, a short develops, and there is fuel, fiberglass and wood nearby. Correct circuit protection is the single most important safety detail in a marine electrical system. This guide covers how to size fuses and breakers, where to put them, and which type fits each job.
Step 1: Size protection to the wire
Here is the principle: a wire can safely carry a certain current (its ampacity). The fuse or breaker must blow before that current is exceeded. If you fuse a 14 AWG wire with a 30-amp fuse, the wire can overheat long before the fuse does anything.
- Find the device's normal running current from its manual.
- Choose wire large enough for that current and the run length (see our wire and terminal guide).
- Pick a fuse or breaker a bit above normal running current but no higher than the wire's rated ampacity.
- Many manufacturers specify the fuse size, so use what the manual says.
Step 2: Put it close to the source
Protection only covers wire downstream of it. A fuse at the device end leaves the whole run back to the battery unprotected. ABYC calls for overcurrent protection within 7 inches of the battery or power source, or up to 72 inches if the conductor is protected in a sheath or conduit. The engine cranking circuit is a common exception. Every positive conductor off the battery should be protected.
Step 3: Choose the right fuse type
| Fuse type | Typical range | Best for |
|---|---|---|
| ATO/ATC blade | 1 to 30A | Fuse blocks, accessories, electronics |
| AGC glass | 1 to 30A | Older panels, inline holders |
| MAXI blade | 30 to 80A | Sub-panels, high-current accessories |
| MEGA/AMG | 100 to 300A | Main feeds, windlasses, charging circuits |
| MRBF terminal fuse | 30 to 300A | Mounts directly on the battery post, saves space |
| ANL | 35 to 750A | Main feeds and large loads |
| Class T | 110 to 400A | Inverters and large or lithium battery banks |
Interrupt capacity matters on big banks. A large or lithium bank can deliver enormous short-circuit current, and a fuse must be able to safely stop it. Class T fuses have a far higher interrupt rating than ANL, which is why inverter makers specify them.
Step 4: Fuse or breaker?
- Fuses are inexpensive, compact, very reliable and precise. The downside: once blown, you need a spare. Keep a spare kit on board.
- Circuit breakers reset with a flip, double as on/off switches, and make troubleshooting easier. They cost more and take more space.
A common layout is a breaker panel for main circuits (lights, pumps, electronics), a fuse block for add-on accessories, and heavy fuses at the battery for main feeds. For gasoline engine compartments, any device should be ignition protected.
Step 5: Organize with a fuse block or panel

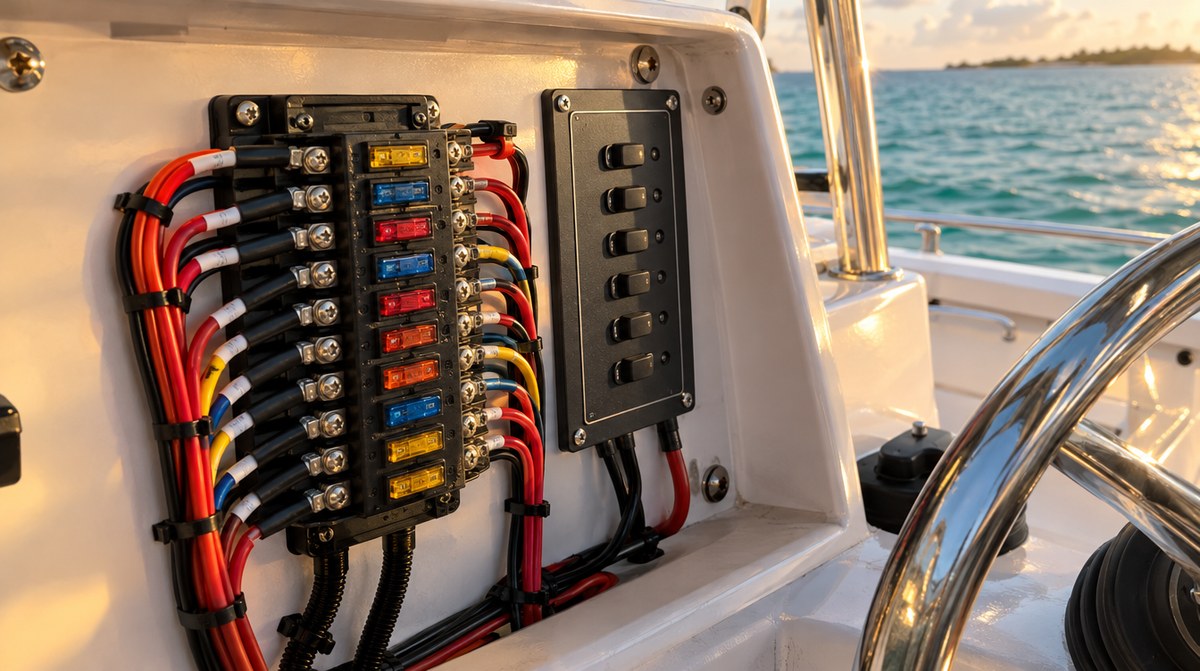

Adding accessories one inline fuse at a time leads to a rat's nest behind the dash. A fuse block with a negative bus gives each accessory its own labeled fuse and ground, fed by one properly fused supply wire. A breaker panel adds switches and a professional look.
Step 6: Troubleshoot blown fuses the right way
A fuse that blows is doing its job. Never replace it with a larger one. Look for a chafed wire, a water-soaked connection, a failing pump motor, or a device that draws more than expected. If a breaker trips repeatedly, find the cause before resetting it again.
Our picks by job
All in stock at Boat Supplies Direct.
Accessory fuse blocks
Blue Sea 5025 ST Blade Fuse Block, 6 circuit with negative bus or the 12 circuit Blue Sea 5026.
Inline protection for single accessories
Blue Sea 5021 Water Resistant Fuse Holder.
Fuse right at the battery
Blue Sea 5183 100A MRBF Terminal Fuse (also available from 40A to 175A and up).
Main feeds and windlasses
Blue Sea 5001 MEGA Fuse Block with a 150A MEGA Fuse, or an ANL 300A Fuse.
Inverters and lithium banks
Blue Sea 5119 300A Class T Fuse or the 200A Class T.
Breakers and breaker panels
Blue Sea 7206 10A Magnetic Circuit Breaker, or a full Blue Sea 8096 DC 6 Position Breaker Panel.
Frequently Asked Questions
How do I size a fuse for a marine circuit?
Choose a fuse slightly above the device's normal running current but no higher than the rated capacity of the wire, and follow the manufacturer's specified fuse size when given.
Where should a fuse be installed on a boat?
As close to the power source as possible. ABYC calls for within 7 inches of the battery or source, or up to 72 inches if the wire is protected in a sheath or conduit.
Fuse or circuit breaker, which is better?
Both protect wiring. Fuses are inexpensive and very reliable but must be replaced when blown. Breakers can be reset and double as switches. Many boats use breakers at the panel and fuses for accessories and main feeds.
Can I replace a blown fuse with a bigger one?
No. A larger fuse lets the wire overheat before it blows, which can start a fire. Find and fix the cause of the blown fuse.
What is a Class T fuse and when do I need one?
A Class T fuse has a very high interrupt capacity, so it can safely stop the huge short-circuit currents a large or lithium battery bank can deliver. Most inverter manufacturers require one.
What is an MRBF fuse?
A marine rated battery fuse that mounts directly on the battery terminal stud, protecting the cable right at the source in very little space.
This guide is general information. Follow ABYC standards and your equipment manufacturers' fusing requirements, and use a qualified marine electrician for main power systems.
