Thru-Hull Fitting Buying Guide: Bronze vs Plastic, Seacocks and Safe Installs

By Boat Supplies Direct·Updated Oct 18, 2026·5 min read

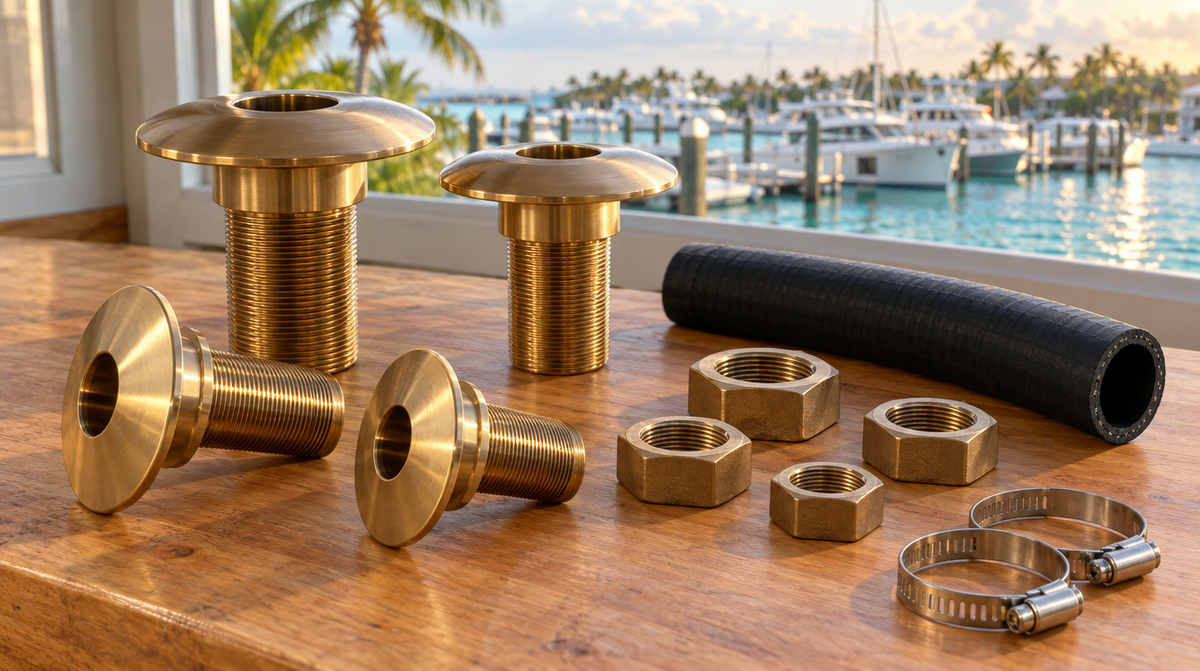

Bronze thru-hull fittings with nuts, hose and clamps on a workbench

Quick answer: Below or near the waterline, use a bronze or glass-reinforced composite (Marelon) thru-hull paired with a proper quarter-turn seacock you can close in seconds. Plain plastic thru-hulls are for above-waterline drains only. Match the thru-hull to your hose size, bed it in marine sealant over a backing block, and double-clamp every hose connection below the waterline.

Every hole in your hull is a potential way to sink the boat. Thru-hull fittings carry water in and out for engine cooling, livewells, washdown pumps, bilge pumps, cockpit scuppers and heads. Above the waterline, a cheap fitting is a nuisance if it fails. Below the waterline, a cracked plastic fitting or a seized valve can put the boat on the bottom at the dock. This guide covers materials, sizing, seacocks and installation.

Step 1: Know where the fitting sits

Location	Typical use	Material	Shutoff
Well above the waterline	Bilge pump discharge, scuppers, vents	Plastic, composite or bronze	Not usually needed
Near the waterline	Scuppers and discharges that go underwater when loaded or heeled	Bronze or reinforced composite	Seacock recommended
Below the waterline	Engine intake, livewell, washdown, head	Bronze or reinforced composite only	Seacock required

Remember the waterline moves. A loaded boat, a heeling sailboat or a boat in a following sea puts "above the waterline" fittings underwater.

Step 2: Choose the material

Bronze: the classic below-waterline choice. Strong, durable and resistant to impact. Bond it to the boat's bonding system if your boat has one.
Glass-reinforced composite (Marelon type): corrosion-proof and strong, a good choice for many hulls.
Unreinforced plastic or nylon: fine for above-waterline drains. It can become brittle with UV and age, so never use it below the waterline.
Chrome-plated bronze: good-looking for visible above-waterline discharges.

Step 3: Size it to the hose and the job

Match the thru-hull bore to the hose and the device. A bilge pump with a 1-1/8 inch outlet wants a 1-1/8 inch thru-hull. Engine intakes should match the engine maker's specification. Never neck down to a smaller fitting, it restricts flow and makes pumps work harder.

Step 4: Pair below-waterline fittings with a real seacock

Use a marine seacock with a quarter-turn lever you can close quickly in an emergency.
Never use a household gate valve. They corrode internally and can fail without warning.
Check thread compatibility. Many thru-hulls use straight (NPS) threads while some valves use tapered (NPT) threads. Mismatched threads only engage a few turns and can break off. Use matched components or a flanged seacock bolted through the hull.
Exercise every seacock a few times each season so it does not seize.

Step 5: Install it to last

Drill a clean hole, and on cored hulls remove the core around the hole and fill it with epoxy so water cannot get in.
Fit a backing block inside the hull to spread the load and give the nut a flat surface.
Bed the flange in a marine polyurethane sealant.
Tighten evenly and clean off the excess sealant.
Use the right hose and double-clamp below-waterline connections with all-stainless clamps.

Common thru-hull mistakes

Plastic below the waterline. Unreinforced plastic can crack from age, UV or a hard bump and sink the boat.
Gate valves instead of seacocks. They hide internal corrosion and can fail open or closed.
Mismatched threads between the thru-hull and the valve, leaving only a few turns holding the valve on.
No backing block, so the fitting flexes, leaks and loosens over time.
Unsealed core, letting water into the hull laminate.
Seized seacocks that nobody has operated in years.

Tie a soft wooden plug of the right size to each below-waterline fitting. If a hose or fitting fails, you can stop the water while you get the boat to safety.

Before you order: quick checklist

Hose inside diameter and the device the fitting serves.
Hull thickness at the install point, so the threads are long enough.
Above or below the waterline, including when loaded or heeled.
Thread type if you are adding a valve, so parts match.
Backing block material, sealant, and all-stainless clamps.
A soft wood plug sized to the fitting for emergencies.

If you are replacing an old fitting, remove it completely, clean the hole back to sound laminate, and inspect the core around it. Wet or soft core needs to be dug out and filled with epoxy before the new fitting goes in.

Our picks

All in stock at Boat Supplies Direct.

Frequently Asked Questions

What material should a below-waterline thru-hull be?

Bronze or glass-reinforced composite, paired with a seacock. Never use unreinforced plastic below the waterline.

Do all thru-hulls need a seacock?

Any fitting below or near the waterline should have a seacock so you can shut off water flow in an emergency or for service.

Can I use a plastic thru-hull for my bilge pump discharge?

Yes, if it sits well above the waterline even when the boat is loaded. Plastic is not for fittings that end up underwater.

What sealant should I use on a thru-hull?

A marine polyurethane sealant designed for below-waterline use. Follow the fitting maker's recommendation.

Can I screw a seacock onto a thru-hull?

Only if the threads match. Straight (NPS) and tapered (NPT) threads do not mate properly and can fail. Use matched parts or a flanged seacock.

How often should I check thru-hulls and seacocks?

Inspect them every haul-out and exercise each seacock a few times a season so it opens and closes freely.

This guide is general information. Below-waterline fittings are critical to safety. Follow ABYC standards and the manufacturer's instructions, and use a qualified marine technician if you are unsure.
