Marine Latch and Hinge Buying Guide: Compression, Slam and Flush Latches

Quick answer: Choose 316 stainless steel or marine-grade nylon latches and hinges so they don't rust or seize. Match the latch to the job: a compression latch to pull a hatch down tight against its gasket, a slam latch that locks when you close a door, a flush latch on decks where lines and feet would snag, and a locking version for anything you want secured. Measure panel thickness and cutout size before ordering, because latches are sized to both.

Latches and hinges are small parts that cause big headaches when they fail: a hatch that flies open at speed, a compartment that leaks because the lid doesn't seal, or a corroded latch frozen shut when you need a fire extinguisher. Picking the right hardware the first time saves that hassle. This guide covers latch types, materials, sizing and installation.

Step 1: Know the latch types

Type	What it does	Best for
Compression latch	Pulls the lid down tight as you turn it	Hatches with gaskets that must seal out water
Slam latch	Locks automatically when the door shuts	Console and cabin doors that need to stay shut

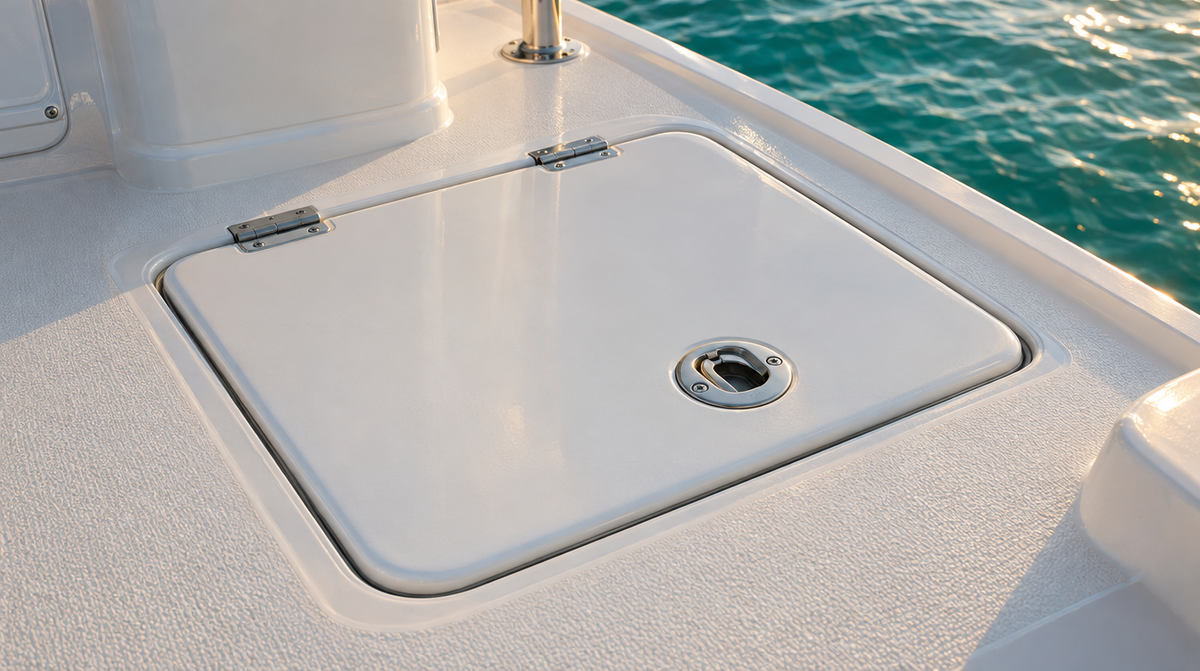

Flush pull latch	Lies flat, pull ring or lever to open	Deck hatches where feet and lines would snag
T-handle latch	Turn the handle to cam the latch	Compartments and storage boxes
Grabber catch	Holds a door closed by spring tension	Interior cabinets and light doors
Draw latch	Pulls two parts together with tension	Removable lids, cushions and covers

Step 2: Choose the right material

• 316 stainless steel: the best corrosion resistance for exposed hardware in salt water.
• 304 stainless: good, but more prone to rust spots in salt. Better for covered areas.
• Marine nylon and polymer: won't corrode, light, often UV-stabilized. Great for latches and many hinges.
• Chrome-plated zinc (zamac): fine in fresh water, but plating breaks down in salt. Many are labeled freshwater only for a reason.

Step 3: Measure before ordering

• Panel or lid thickness: latches have a grip range. Too thick and the cam won't reach.
• Cutout size: flush latches need a specific hole diameter.
• Cam bar style: straight or offset, depending on where the catch is.
• Hinge size and pin type: match the existing screw pattern if you are replacing hardware.

Step 4: Decide on locking

Locking latches secure electronics boxes, tackle storage and anything you leave on a boat at a marina or on a trailer. Choose keyed-alike locks if you have several, and keep spare keys aboard.

Step 5: Install it right

1. Dry fit before drilling and check clearance for the cam or catch.
2. Seal the cutout edges in cored panels with epoxy or sealant to protect the core.
3. Use stainless fasteners and isolate dissimilar metals with nylon washers.
4. Adjust compression latches so the gasket compresses evenly without over-tightening.

Step 6: Maintain moving parts

Rinse latches and hinges with fresh water after salt runs, and lubricate them periodically with a marine-safe lubricant. Replace worn gaskets so compression latches can do their job.

Common mistakes to avoid

• Buying freshwater hardware for a saltwater boat. Chrome-plated zinc latches pit and fail quickly in salt. Read the listing and buy 316 stainless or marine nylon.
• Getting the grip range wrong. If the panel is thicker than the latch's range, the cam never reaches the catch and the hatch won't lock.
• Over-tightening compression latches. Cranking down crushes the gasket and it stops sealing. Adjust so it compresses evenly and just firm.
• Leaving the cut edge of a cored panel exposed. Seal it so water can't wick into the core around the latch.
• Losing the keys. Order keyed-alike locks when you can and keep a spare key on board and one at home.
• Forgetting gas struts and hold-opens. A heavy hatch with no support can slam on fingers. Add a hold-open or strut on big lids.

Quick buying checklist

• What must the latch do: seal, lock, sit flush, or just hold a door shut?
• 316 stainless or marine nylon for salt water.
• Panel thickness inside the latch's grip range.
• Cutout diameter and cam bar style (straight or offset).
• Locking or non-locking, and keyed-alike if you need several.
• Matching hinges and a hold-open for heavy lids.

Our picks

All in stock at Boat Supplies Direct.

Watertight hatches: compression

Southco Flush Compression Lever Latch, Locking or the Whitecap Nylon Compression Handle, Non-Locking.

Doors that lock on close: slam latches

Whitecap 316 Stainless Slam Latch.

Flush deck latches

Perko Flush Latch, 2.5 in Hole, Offset Cam or the Straight Cam version.

Compartments: T-handle latches

Whitecap Nylon T-Handle Latch, Locking or Non-Locking.

Hinges

Whitecap 316 Stainless Flush Mount Hinge or the Whitecap Black Nylon Door Hinge.

Interior doors and lids

Southco Grabber Catch and the Southco Concealed Soft Draw Latch.

Shop all marine latches →

Frequently Asked Questions

What material should marine latches be?

316 stainless steel or marine-grade nylon. Both resist corrosion in salt air. Chrome-plated zinc latches are best kept to fresh water.

What is a compression latch on a boat?

A latch that pulls a hatch or door down tight against its gasket as you turn it, sealing out water and stopping rattles.

What is the difference between a slam latch and a compression latch?

A slam latch locks automatically when you close the door. A compression latch must be turned and pulls the lid tight to seal it.

How do I choose the right size latch?

Measure the panel thickness for the latch's grip range, the cutout diameter for flush latches, and where the catch sits for the cam style.

Why is my boat latch rusting?

It is likely 304 stainless or plated metal in salt water. Replace it with 316 stainless or marine nylon, and rinse hardware with fresh water.

Can I replace a boat hatch hinge myself?

Yes. Match the screw pattern and size, use stainless fasteners, and seal the holes with marine sealant.

This guide is general information. Measure carefully and follow the hardware manufacturer's cutout and installation instructions.
