Marine VHF Antenna Buying Guide: Gain, Length, Mounting and Cable
Quick answer: Most powerboats should run an 8 foot, 6 dB VHF antenna. Sailboats should use a 3 foot, 3 dB antenna at the masthead, and larger sportfish and yachts can step up to a 9 dB antenna of 15 feet or more. Mount it as high as you can, keep the coax run short with low-loss cable, and seal every connector. Height and good cable matter more than anything printed on the box.
Your VHF radio can only reach as far as its antenna lets it. A $500 radio on a corroded, poorly mounted antenna will be out-talked by a $150 radio on a good one. Because VHF is line of sight, the antenna's height above the water sets your range, and the antenna's gain decides how that energy is shaped. This guide explains gain, length, mounting and cable so you get every mile out of your radio.
Step 1: Understand gain
Gain (measured in dB) does not create power. It squeezes the signal into a flatter, more focused pattern. Higher gain sends the signal farther toward the horizon, but with a thinner beam. On a boat that rolls or heels, too thin a beam can tip up into the sky or down into the water.
| Gain | Typical length | Best for |
|---|---|---|
| 3 dB | About 3 to 4 feet | Sailboats (masthead), small boats, boats that roll or heel a lot |
| 6 dB | About 8 feet | Most powerboats: center consoles, bay boats, cruisers |
| 9 dB | About 15 to 23 feet | Large sportfish and yachts that ride flat and want maximum range |
Step 2: Mount it high

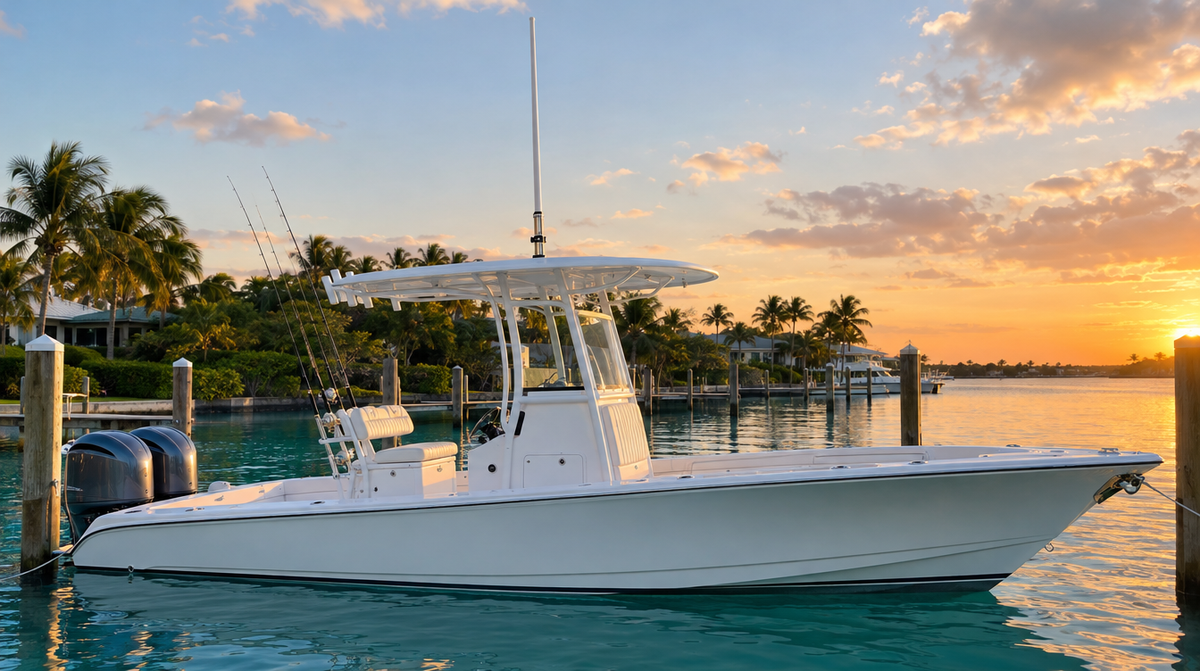

Height is the single biggest factor in range. Every few feet you gain extends your radio horizon. On a center console, the top of the T-top is the usual spot. On a sailboat, the masthead puts the antenna 30 feet or more in the air, which is why a short 3 dB antenna up there easily outperforms a long one on deck.
- Mount clear of other antennas, radar domes and metal structures where possible, ideally with a few feet of separation.
- Use a sturdy ratchet mount so you can lower long antennas for trailering, storage or low bridges.
- On rails or T-tops, use a rail mount or extension designed to support the antenna's length and wind load.
Step 3: Choose the right cable
Coax cable loses signal over distance, and that loss counts against you on both transmit and receive.
- RG-58: thin and flexible, fine for short runs, roughly up to about 20 feet.
- RG-8X: lower loss, a good choice for most longer runs on powerboats.
- RG-213 or similar heavy cable: the lowest loss, for long runs up a mast or on large yachts.
Use tinned, marine-grade coax, keep the run as short as possible, and avoid tight bends. Many antennas come with a pre-attached cable, so check its length and type before buying an extension.
Step 4: Make good connections
- Use quality PL-259 connectors, properly soldered or crimped for your cable type.
- Seal outdoor connections with self-amalgamating tape or heat shrink to keep water out.
- Avoid unnecessary adapters and barrel connectors, which add loss and failure points.
- Route cable away from engine wiring and keep it supported every 18 inches or so.
Corroded connectors are the most common cause of a radio that suddenly "lost range." If your signal reports drop, check the connectors first.
Step 5: Plan for AIS, AM/FM and backups
- AIS: an AIS receiver or transponder can share your VHF antenna through a proper splitter, or use its own dedicated antenna.
- Stereo: AM/FM needs its own antenna. Do not try to share your VHF antenna with your stereo.
- Emergency antenna: sailors often carry a spare emergency antenna in case the mast comes down.
Before you buy, measure the distance from the antenna location to the radio so you know how much cable you need.
Our picks by boat
All in stock at Boat Supplies Direct.
Center consoles and bay boats (8 foot, 6 dB)
Shakespeare Galaxy 5225-XT 8 foot, 6 dB, a premium choice with low-loss construction, also in black (5226-XT). On a budget, the Shakespeare 5101 Classic 8 foot with 15 feet of cable.
Smaller boats and short T-tops (4 foot, 3 dB)
Shakespeare Galaxy 5400-XT 4 foot, 3 dB or the Digital Antenna 528-VW 4 foot.
Sailboat masthead
Shakespeare Skinny Mini 36 inch or the Shakespeare 5242-A 36 inch stainless whip.
Sportfish and yachts (9 dB and up)
Shakespeare Galaxy 5018 15 foot, 9 dB for maximum range on boats that ride flat.
All-in-one VHF, AIS and GPS
Digital Yacht GV30 VHF/AIS/GPS Combo Antenna for a clean, compact install.
Pair your antenna with a radio from our VHF radio buying guide.
Shop all VHF radios and antennas →
Frequently Asked Questions
What is the best VHF antenna for a center console?
An 8 foot, 6 dB antenna mounted on top of the T-top is the standard choice. It balances range with a beam wide enough to handle the boat's motion.
Is a higher dB VHF antenna always better?
No. Higher gain flattens the signal pattern, which helps on boats that ride flat but can hurt on boats that roll or heel. Sailboats are usually best with 3 dB at the masthead.
How high should a VHF antenna be mounted?
As high as practical. VHF is line of sight, so antenna height increases range more than gain or power does.
What coax cable should I use for a VHF antenna?
RG-58 works for short runs of roughly 20 feet. For longer runs, use lower-loss RG-8X or heavier cable, tinned for the marine environment.
Can I share my VHF antenna with AIS?
Yes, with a proper VHF/AIS antenna splitter designed for it. Otherwise, use a separate antenna for AIS.
Why did my VHF range suddenly drop?
The most common cause is a corroded or water-soaked connector or a damaged cable. Inspect and reseal the connections before replacing the radio.
This guide is general information. Follow your antenna and radio manufacturers' installation instructions.
