Trim Tab Buying Guide: What Size, Electric vs. Hydraulic, and How to Use Them
Quick answer: Trim tabs mount on the bottom corners of the transom and help your boat get on plane faster, ride level side to side, and cut through chop more comfortably. A common sizing starting point is at least one inch of tab span for every foot of boat length, combined across both tabs, then size up for heavy, slow or underpowered boats. Choose electric for a simple install or hydraulic for a proven classic, and add indicators so you always know where the tabs are.
If your bow rides high, your boat leans to one side with a crosswind or uneven load, or it struggles to get on plane, trim tabs are one of the best upgrades you can make. They work like adjustable flaps on an airplane wing, pushing the stern up and the bow down. This guide covers how tabs work, sizing, electric versus hydraulic, and installation.
Step 1: Know what trim tabs fix
- Faster hole shot: lowering both tabs lifts the stern and helps the boat get on plane with less bow rise.
- Level ride: lowering one tab corrects a list caused by wind, waves or uneven weight.
- Smoother in chop: bringing the bow down lets the sharper forward hull cut waves instead of slapping.
- Better visibility and efficiency: less bow rise means you can see ahead and often use less fuel at cruise.
Step 2: Size the tabs
Span is the side to side width of each tab. A common starting point is at least one inch of total tab span for every foot of boat length. Then adjust:
| Boat length | Typical tab size per side |
|---|---|
| Up to about 18 ft | 9 x 9 inch |
| About 18 to 22 ft | 9 x 12 or 12 x 9 inch |
| About 19 to 24 ft | 12 x 12 inch |
| About 22 to 27 ft and up | 16 x 12 or 18 x 12 inch and larger |
Size up for heavy boats, slower boats, and boats that struggle to plane. Larger tabs give more lift at lower speeds. Check the tab maker's application chart for your hull.
Step 3: Electric or hydraulic?
| Electric | Hydraulic | |
|---|---|---|
| How they move | Electric actuators on each tab | A pump sends fluid to cylinders |
| Install | Simpler, no pump or fluid lines | More components to mount and plumb |
| Space | Compact, good for tight transoms | Needs room for the pump |
| Track record | Modern and reliable | The long-proven classic design |
Step 4: Check your transom space

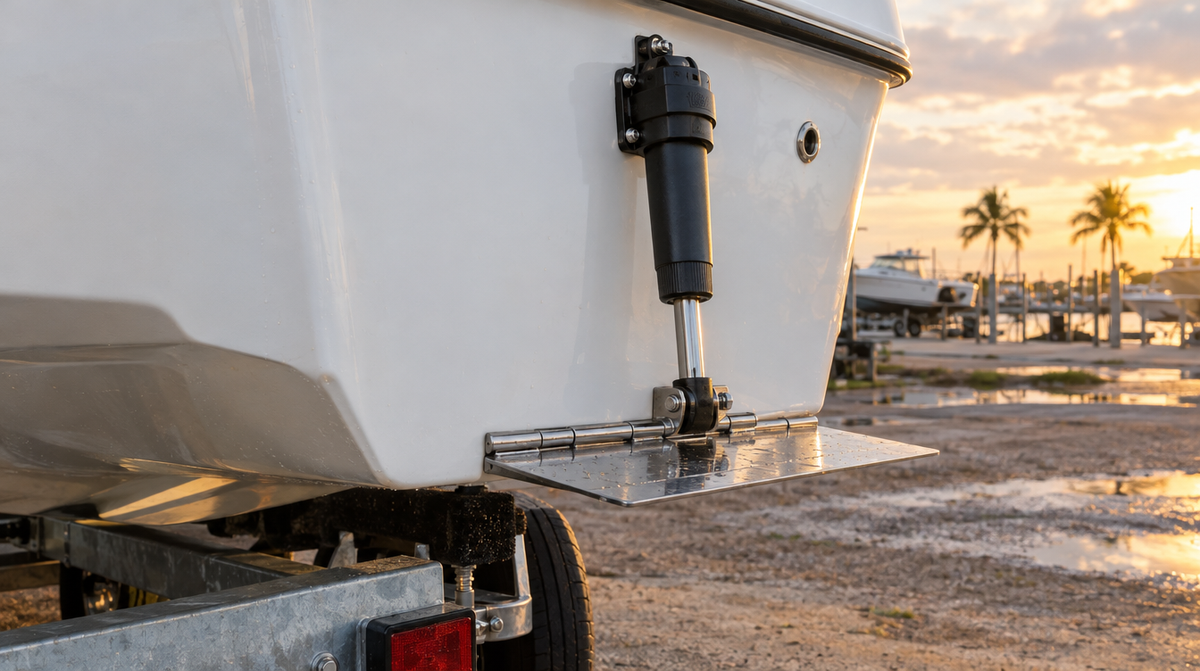

- Tabs mount at the bottom of the transom, outboard of the engine, with their hinge at or just above the bottom of the hull.
- Keep them clear of the outboard's travel, your transducer and the swim ladder.
- If space is tight, edge mount or limited-space kits use narrower actuators.
Step 5: Choose your controls
- Rocker or tactile switches: simple bow up and bow down control for each side.
- LED indicators: show tab position so you are not guessing, which helps avoid running with tabs down by mistake.
- Automatic leveling: some systems auto-adjust the tabs to keep the boat level and retract them at the dock.
Step 6: Use them right
- Lower both tabs before a hole shot, then raise them as you come on plane.
- Use small taps. Tabs work fast, and too much tab makes the bow plow and steering heavy.
- To correct a lean, lower the tab on the side that is riding low. It lifts that side and levels the boat.
- Retract tabs fully at the dock and before trailering to protect them.
Common trim tab mistakes
- Tabs that are too small. Undersized tabs do little at low planing speeds, which is exactly when most boats need help.
- Too much tab at speed. Full tab at high speed makes the bow plow and steering heavy. Use small taps once on plane.
- Running with tabs down by accident. Indicators prevent wasted fuel and odd handling.
- Bad placement. Tabs mounted too high, too close to the engine, or in front of the transducer cause problems. Follow the mounting template.
- Leaving tabs down at the dock. Retract them to protect against impact and marine growth.
Our picks
All in stock at Boat Supplies Direct.
Smaller boats (up to about 18 ft)
Lenco 9 x 9 Electric Trim Tab Kit with Switch or the 9 x 9 with LED indicators.
Mid-size boats (about 18 to 24 ft)
Lenco 12 x 12 Performance Kit with LED Indicator Switch or the Lenco 12 x 9 Performance Kit.
Larger and heavier boats
Lenco 16 x 12 Heavy Duty Kit with LED Indicators or the Lenco 18 x 14 Kit.
Tight transoms
Bennett BOLT 12 x 12 Edge Mount Electric Kit or the Lenco 12 x 12 Edgemount with LED Indicators.
Hydraulic with automatic leveling
Bennett 129ATP Hydraulic Kit with Auto Trim Pro.
Frequently Asked Questions
What size trim tabs do I need?
Start with at least one inch of total tab span for every foot of boat length, then size up for heavy or slow boats. Most 19 to 24 ft boats use 12 x 12 inch tabs.
Are trim tabs worth it?
For most boats over about 17 ft, yes. They improve hole shot, level the ride, cut through chop better and improve visibility.
Electric or hydraulic trim tabs?
Electric tabs are simpler to install and compact. Hydraulic tabs are a proven classic. Both work well when sized correctly.
Which trim tab do I lower to fix a lean?
Lower the tab on the side that is riding low. It lifts that side of the stern and levels the boat.
Where do trim tabs mount?
On the bottom corners of the transom, outboard of the engine, with the hinge aligned with the bottom of the hull.
Do I need trim tab indicators?
They are strongly recommended. Indicators show where the tabs are so you do not run with them down by mistake.
This guide is general information. Follow the trim tab manufacturer's sizing chart and installation instructions for your specific hull.
