Water Pump Impeller Buying Guide: How to Match, Replace and Avoid Overheating
Quick answer: Buy the impeller by your pump's exact part number, not by looks. Blade count, diameter, width and the drive type (spline, flat, key or pin) all have to match. Replace it on your engine maker's schedule, commonly every 1 to 3 seasons or a few hundred hours, carry a spare on board, and never run the pump dry. If cooling water stops, shut down immediately.

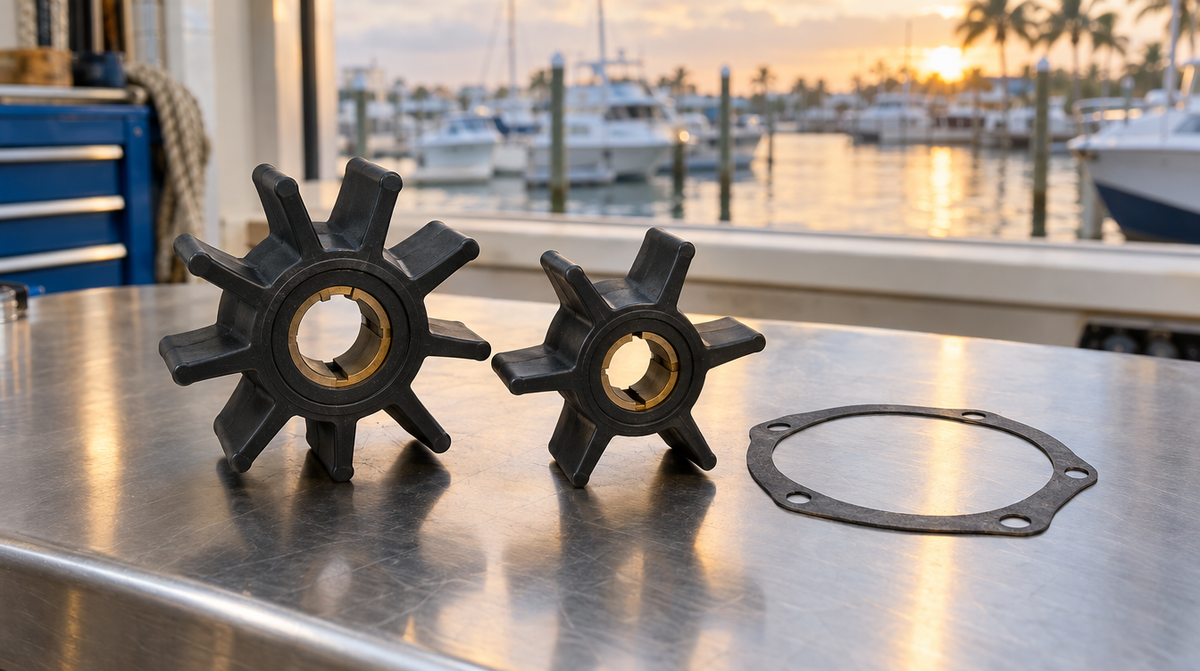

The raw water impeller is a small rubber wheel that pushes seawater through your engine to keep it cool. It is also one of the most common reasons boats get towed home. Rubber vanes take a set, crack and break off with age, heat and dry running, and a failed impeller can overheat an engine in minutes. The good news: impellers are cheap, easy to stock, and simple to change once you know what to buy.
Step 1: Identify your pump
Find the pump maker and model number on the pump body or in your engine manual. Inboard and generator raw water pumps are often Jabsco, Johnson or Sherwood. Outboard and sterndrive impellers live inside the lower unit or drive and come in engine-specific water pump kits.
If you cannot find the model, pull the old impeller and measure it.
| What to check | Why it matters |
|---|---|
| Outside diameter | Must fill the pump housing to seal and pump |
| Width | Too narrow leaks, too wide binds against the cover |
| Blade count | Changes flow and fit, match the original |
| Drive type and shaft size | Spline, double flat, key or pin. A wrong drive will not turn |
| Rubber compound | Neoprene or nitrile, see below |
Step 2: Neoprene or nitrile?
- Neoprene: the general-purpose choice for raw water cooling and washdown pumps. Good wear resistance in clean or sandy water.
- Nitrile: resists oil and fuel. Use it where the pump may see oily water, such as bilge pumping or contaminated water.
When in doubt, use the compound the pump maker specifies.
Step 3: Replace on a schedule, not when it fails
Impellers are wear parts. Many manufacturers call for inspection or replacement every 1 to 3 years or around a few hundred engine hours. Check your owner's manual for your exact interval. Replace sooner if you:
- See a weak or sputtering telltale stream on an outboard.
- Notice engine temperature creeping up.
- Ran the engine without water, even briefly.
- Boat in sandy or silty water often.
Step 4: Change it right
- Close the raw water seacock and remove the pump cover.
- Pull the old impeller with an impeller puller or two screwdrivers, carefully.
- Count every vane. Missing pieces will block the cooler or heat exchanger downstream and must be found.
- Lightly coat the new impeller with the lubricant supplied, glycerin or a little dish soap. Avoid petroleum grease, which can swell rubber.
- Install with a twisting motion in the pump's direction of rotation.
- Fit a new gasket or O-ring, reinstall the cover, open the seacock and confirm flow at start-up.
Step 5: Carry spares
Keep a spare impeller, cover gasket, and the tools to swap it on board. A change at the dock takes minutes. A change while drifting in a channel with an overheating engine is a bad day. While you are in there, check the raw water strainer too.
Common impeller mistakes
- Buying by eye. Two impellers can look the same and still differ in width or drive type. Match the part number.
- Losing the broken vanes. Leaving pieces in the system can block cooling and cause the next overheat.
- Running dry at the dock. Starting the engine with the seacock closed, or on the trailer without muffs, can wreck a new impeller in seconds.
- Reusing an old cover gasket. A tired gasket can leak air and stop the pump from priming.
- Storing the spare in the sun. Rubber ages with heat and UV. Keep spares sealed and in a cool locker.
Write the replacement date and engine hours on a piece of tape near the pump or in your log. It takes the guesswork out of the next service.
Before you order: quick checklist
- Pump maker and model number, or the engine model if the pump is built in.
- Impeller diameter, width and blade count from the old one.
- Drive type: spline, double flat, key or pin, plus shaft diameter.
- Neoprene or nitrile for your use.
- A new cover gasket or O-ring, and a spare impeller for the boat.
Our picks
All in stock at Boat Supplies Direct. Always confirm your pump model before ordering.
Popular Jabsco impeller kits
Jabsco 6 Blade Neoprene Impeller Kit, 1-9/16 in, Jabsco 8 Blade Neoprene Impeller Kit, 2-9/16 in, and Jabsco 9 Blade Neoprene Impeller Kit, 3 in.
Nitrile for oily water
Jabsco 8 Blade Nitrile Impeller Kit, Spline Drive or the Jabsco 6 Blade Nitrile Impeller Kit, 2 in.
Johnson and Raritan pumps
Johnson Pump F7B Impeller (09-1028BT-1) and Raritan G13 Impeller with Washers and Gaskets.
Make the swap easy
Jabsco Impeller Removal Tool (40 to 65 mm).
Frequently Asked Questions
How often should I replace my boat impeller?
Follow your engine manual. Many makers call for inspection or replacement every 1 to 3 years or a few hundred hours, and immediately after any dry running.
How do I know what impeller I need?
Match the pump maker and model number, or measure diameter, width, blade count and drive type of the old impeller and match all of them.
What are the signs of a bad impeller?
A weak or missing telltale stream, rising engine temperature, steam from the exhaust, or an overheat alarm. Shut down and check right away.
Can I run my boat engine out of the water?
Not without a water supply. Running dry for even a short time can destroy the impeller. Use flush muffs or a hose adapter.
What happens to broken impeller blades?
They travel downstream and can block the heat exchanger or cooling passages. Find and remove every missing piece before running the engine.
Neoprene or nitrile impeller?
Neoprene for normal raw water cooling. Nitrile where the pump may handle oil or fuel, like bilge pumping.
This guide is general information. Always follow your engine and pump manufacturer's service intervals and procedures, and see a qualified mechanic for outboard lower unit water pumps.
