Fishfinder and Transducer Buying Guide: CHIRP, Imaging and Mounting Explained
Quick answer: The transducer matters more than the screen. Pick a fishfinder with CHIRP sonar, add down imaging or side imaging if you fish structure, and choose the transducer mount that fits your hull: transom mount for most outboard boats, thru-hull for inboards and offshore boats, in-hull if you never want to drill below the waterline. Then size the screen to your helm: 4 to 5 inches for small boats, 7 to 9 inches for most center consoles and bay boats.
A fishfinder is two parts: the display you look at and the transducer under the boat that actually does the work. The transducer sends sound pulses down, listens for the echoes, and the display draws what comes back: bottom, bait, fish and structure. A great screen with the wrong transducer will disappoint you. This guide covers frequencies, sonar types, transducer mounting, and how to pick the right size and features for the way you fish.
Step 1: Understand frequency
Every transducer works at one or more frequencies, and each has a tradeoff.
| Frequency | Beam | Best for |
|---|---|---|
| Low (about 50 kHz) | Wide | Deep water offshore, finding bottom at depth |
| Mid (about 77 to 83 kHz) | Wide | All-around coverage on small units |
| High (about 200 kHz) | Narrow | Inshore and shallow water, sharper detail |
| Imaging (about 455 to 1,200 kHz) | Thin slice | Photo-like views of structure and bait |
Lower frequencies reach deeper but show less detail. Higher frequencies show more detail but lose range. Most inshore and bay anglers in Florida live at 200 kHz and imaging frequencies. Offshore anglers fishing deep ledges and wrecks need a strong low frequency too.
Step 2: Choose the sonar type
- Traditional 2D sonar: the classic arches and bottom line. Good for depth and seeing fish under the boat.
- CHIRP sonar: sweeps a range of frequencies instead of one, which separates fish from bait and bottom far better. This should be your minimum today.
- Down imaging: a detailed, almost photographic view of what is directly below, great for brush piles, rock and bait balls.
- Side imaging: scans out to each side so you can find structure and schools without driving over them. Worth it for structure fishing and searching big flats.
- Live sonar: real-time moving images, the top tier for serious anglers, with a big price tag to match.
Step 3: Pick a transducer mount
| Mount | Pros | Watch out for |
|---|---|---|
| Transom mount | Easy install, low cost, most common on outboards | Turbulence at speed can cause lost readings if set too high |
| Thru-hull | Best performance at speed, ideal for inboards and offshore | Requires drilling below the waterline, usually a haul-out |
| In-hull (shoot-through) | No holes, protected inside the hull | Only works through solid fiberglass, some signal loss |
| Trolling motor | Sees where you are fishing at the bow | Shows only what is near the trolling motor |
Transom mounts must sit in clean, smooth water. Mount them away from strakes, the propeller and through-hull fittings, slightly below the bottom of the hull.
Step 4: Size the screen and choose features
- 4 to 5 inch: kayaks, jon boats, small skiffs, ice fishing.
- 7 inch: the sweet spot for most bass, bay and flats boats.

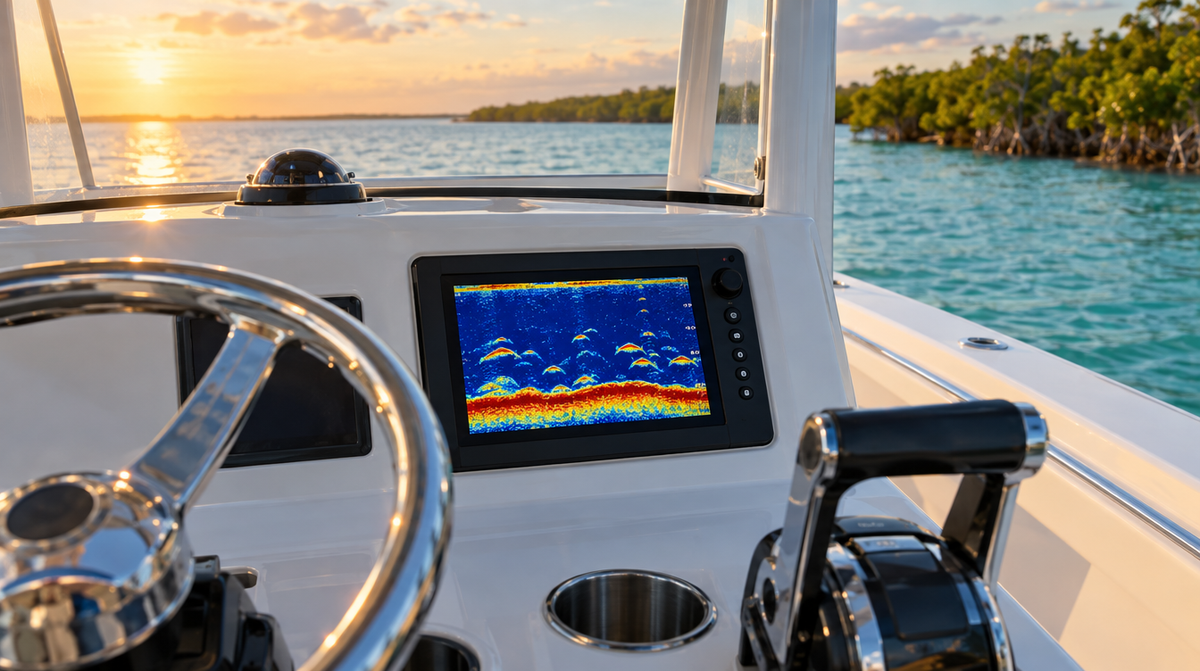

- 9 to 12 inch and up: center consoles and offshore boats, especially if you want a split screen of sonar and chart.
Need a chart too? Many fishfinders are sold as combo units with a GPS chartplotter. If you only want sonar, a fishfinder-only unit with built-in GPS for waypoints is the budget choice. Daylight-readable screens and keypad controls matter more on a bright Florida flat than fancy touchscreens.
Step 5: Install it right
- Match the transducer connector to your display. Pin counts and brands are not interchangeable.
- Mount the transducer parallel to the waterline, not tilted, unless it is a tilted-element thru-hull designed for your deadrise.
- Run cables away from engine wiring and VHF antenna cable to cut interference.
- Wire power directly to the battery or a fuse block with an inline fuse, not to a crowded accessory switch. See our fuse and breaker guide.
- Seal every hole with marine sealant.
Our picks by boat and budget
All in stock at Boat Supplies Direct.
Small boats and first fishfinders
Garmin STRIKER 4 with transom transducer. CHIRP sonar and built-in GPS for marking spots, in a compact 3.5 inch package.
Kayaks, rentals and ice fishing
Garmin STRIKER 4 Portable Bundle with case and battery, or the castable HawkEye FishPod 5X Bluetooth Fishfinder that shows readings on your phone.
Upgrade your transducer
Garmin P19 12 Degree Tilt Thru-Hull Transducer for 8-pin Garmin units, the Garmin P79 600W In-Hull Transducer if you do not want to drill, or the Garmin Airmar B175HW CHIRP Bronze Thru-Hull for serious offshore performance.
Offshore and commercial grade
Furuno FCV-295 10.4 inch Fishfinder, a dedicated sounder trusted by charter captains, paired with a transducer like the Furuno 525T-BSD Bronze Thru-Hull.
Mounts
RAILBLAZA R-Lock Fishfinder Mount or the Garmin Tilt/Swivel Mount for STRIKER 5 and 7.
Frequently Asked Questions
What is the best fishfinder for a small boat?
A compact CHIRP fishfinder with a transom-mount transducer and built-in GPS, like a 4 to 5 inch unit, covers most small boats, skiffs and jon boats for a modest price.
Is CHIRP sonar worth it?
Yes. CHIRP sweeps a range of frequencies, so it separates fish from bait and bottom much more clearly than single-frequency sonar. It is now standard on most good units.
Down imaging or side imaging, which do I need?
Down imaging shows detailed structure directly under the boat. Side imaging scans out to the sides to find structure and schools faster. Structure and flats anglers benefit most from side imaging.
Where should I mount a transom transducer?
Where water flows smoothly at speed, away from strakes, the propeller and other fittings, with the face slightly below the bottom of the hull and parallel to the waterline.
Can a transducer shoot through the hull?
An in-hull transducer can shoot through solid fiberglass, but not through cored hulls, aluminum or air pockets, and it loses some performance compared to a thru-hull or transom mount.
Can I use any transducer with my fishfinder?
No. Transducers and displays must match in brand, connector and frequency. Check the pin count and compatibility list before you buy.
This guide is general information. Always follow your fishfinder and transducer manufacturer's installation instructions, and have a professional install thru-hull transducers.
