Marine Holding Tank Buying Guide: Sizing, Venting and Odor Control
Quick answer: Plan roughly 2 to 5 gallons per person per day depending on how much water your head uses per flush, then size the holding tank for the longest stretch you go between pump-outs. A couple doing weekend trips usually needs 15 to 25 gallons; a family cruising several days often needs 30 to 50. Choose a polyethylene tank, vent it with a line of at least 5/8 inch, add a vent filter, and use odor-resistant sanitation hose throughout.
A holding tank stores toilet waste until you can pump out at a marina or discharge legally offshore. It is the Type III marine sanitation device on most recreational boats, and it is the heart of a head system that does not smell. Size it too small and you are hunting for pump-outs mid-weekend. Vent or plumb it poorly and odor creeps into the cabin. This guide covers capacity, materials, fittings, venting, monitoring and odor control.
Step 1: Estimate daily use
Water used per flush drives tank size more than anything else. Manual and raw-water electric heads use the most; low-flush freshwater electric heads use far less.
| Crew and trip length | Low-flush head (about 2 gal/person/day) | Typical manual head (about 4 gal/person/day) |
|---|---|---|
| 2 people, 2 days | 8 gallons | 16 gallons |
| 2 people, 4 days | 16 gallons | 32 gallons |
| 4 people, 2 days | 16 gallons | 32 gallons |
| 4 people, 4 days | 32 gallons | 64 gallons |
These are planning figures, not guarantees. Add a margin, because you should pump out before the tank is completely full. Overfilling pushes waste into the vent line, which ruins vent filters and can spill overboard.
Step 2: Choose material and shape
- Polyethylene (rotomolded plastic) is the standard for waste. It does not corrode and comes in many shapes to fit hulls, V-berths and under-seat spaces.
- Stainless steel and aluminum are poor choices for black water because waste and its byproducts attack metal over time.
- Flexible bladder tanks can fit awkward spaces, but they are harder to vent well and can permeate odor. Treat them as a last resort.
- Measure carefully and allow room for fittings on top, an inspection port, and hose bends. Tanks must be secured so they cannot shift when full.
Step 3: Plan the fittings
- Inlet from the head: 1-1/2 inch, entering at the top of the tank.
- Pump-out line: 1-1/2 inch from a dip tube that reaches the tank bottom, running to a deck fitting marked WASTE.
- Overboard line (optional): to a Y-valve and macerator for legal offshore discharge.
- Vent: to a through-hull vent fitting on the hull side, away from fresh air intakes and cockpit seating.
- Fittings belong on the top of the tank. Bottom fittings are a leak waiting to happen.
Step 4: Vent it properly to control odor
A holding tank needs air. Waste breaks down cleanly with oxygen (aerobic) and produces hydrogen sulfide, the rotten egg smell, without it (anaerobic). Use a vent line of at least 5/8 inch; a larger line such as 3/4 or 1 inch moves more air and helps odor control. Keep the vent run short and rising with no dips where water can collect. A vent filter at the tank or in the line traps the smell that does escape, and should be replaced as directed.
Step 5: Monitor the level
Guessing tank level is how tanks get overfilled. A tank level sender and gauge or monitor shows you exactly when to pump out. Many senders work with fuel, water or waste; confirm the one you buy is rated for waste tanks and is compatible with your tank material.
Step 6: Keep the system fresh

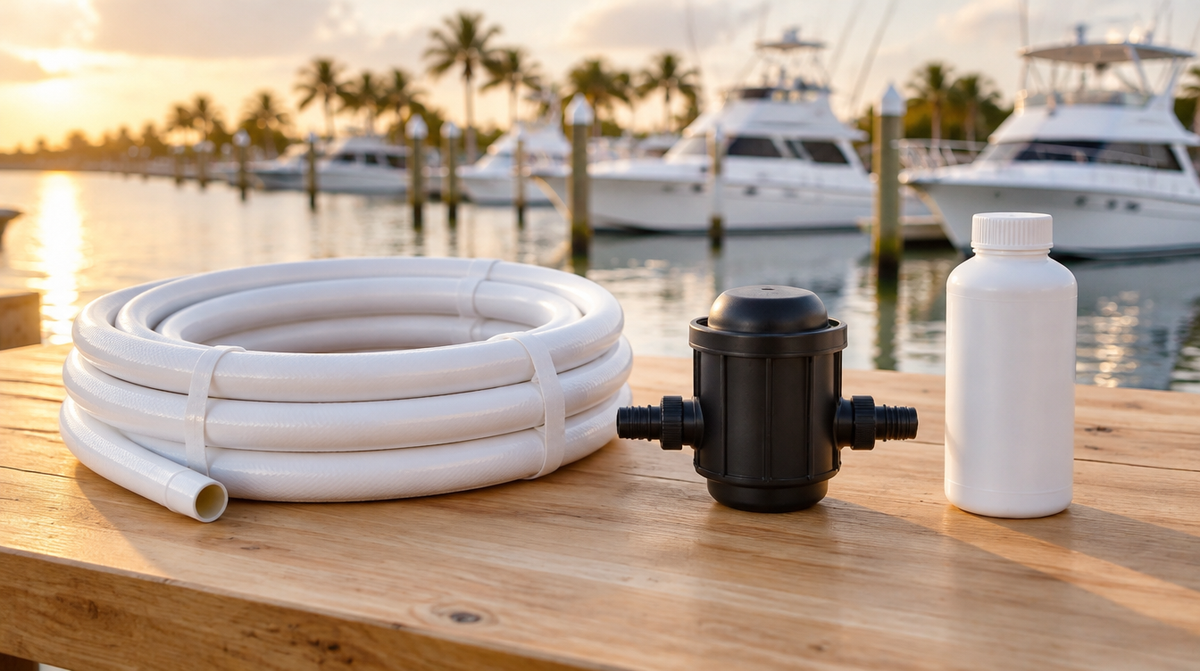

- Use odor-resistant sanitation hose for every waste line. Old hose permeates and smells even when everything else is right. Our marine hose and clamp guide covers the options.
- Add an enzyme or bio-active holding tank treatment after each pump-out.
- Rinse the tank by flushing clean water through the head and pumping out again before lay-up.
- If you also discharge offshore, see our thru-hull and seacock guide for the overboard fitting.
Common holding tank mistakes
- Undersized vent line, starving the tank of air and creating odor.
- Overfilling until waste reaches the vent and filter.
- Using a metal tank for black water.
- Low spots in hoses where waste sits and smells.
- Ignoring the hose. Sanitation hose is a wear item and permeates over time.
Our picks for holding tank systems
All in stock at Boat Supplies Direct.
Vent filters
Dometic Holding Tank Vent Filter, the Perko Odor Eater Vent Filter Kit, or the Camco Marine Vent Filter Kit.
Sanitation hose
Raritan SANI/FLEX 1.5 in Odor Shield Hose or Trident 1-1/2 in Premium Sanitation Hose, both sold by the foot.
Tank level monitoring
Blue Sea VSM 422 Tank Sender for Water or Waste paired with the Blue Sea M2 OLED Tank Monitor.
Holding tank treatments
Raritan K.O. Bio-Active Treatment or Thetford AquaMax Holding Tank Treatment.
Offshore discharge
Jabsco Sealed Macerator Pump 12V for legal discharge beyond 3 nautical miles.
Buying parts often? Get Dock Pass.
Free shipping on every order, 5% off eligible products and 60-day returns for $49 a year. See how Dock Pass works.
Frequently Asked Questions
What size holding tank do I need on my boat?
Plan about 2 to 5 gallons per person per day depending on your head, then multiply by the days between pump-outs. Most couples doing weekends are well served by 15 to 25 gallons.
How do I stop my holding tank from smelling?
Give it plenty of air with a short, large vent line, add a vent filter, use odor-resistant sanitation hose, and treat the tank after each pump-out.
What size vent line should a holding tank have?
At least 5/8 inch. Larger lines, such as 3/4 or 1 inch, move more air and help keep the tank aerobic and odor free.
Can I use an aluminum or stainless tank for waste?
It is not recommended. Waste and its byproducts corrode metal over time, so polyethylene is the standard choice for black water.
Is a holding tank required on my boat?
Any boat with an installed toilet needs a Coast Guard certified Marine Sanitation Device. For most recreational boats that is a holding tank, and it is required in No Discharge Zones.
How full should I let my holding tank get?
Pump out before it is completely full. Overfilling forces waste into the vent line, ruining the filter and risking a spill.
This guide is general information. Follow US Coast Guard Marine Sanitation Device regulations, EPA and state No Discharge Zone rules, your equipment manufacturer's instructions and ABYC standards, and use a qualified marine technician for sanitation system installation.
