NMEA 2000 Networking Guide: Backbone, Tees, Power and Rules
Quick answer: An NMEA 2000 network is a backbone cable with a terminator at each end, a power tee feeding 12V into it, and a T-connector plus drop cable for each device. Keep each drop to 6 meters (20 feet) or less, all drops combined under 78 meters, and no more than 50 devices. Start with a starter kit, add a tee for every device, and you have a plug-and-play network that shares GPS, depth, engine, AIS and autopilot data across the boat.
NMEA 2000 (often written N2K) is the standard that lets marine electronics from different brands talk to each other over one cable. Your GPS can feed your VHF, your engine can show fuel flow on your chartplotter, and your autopilot can follow a route, all through one simple network. It is genuinely plug and play once you understand the few rules. This guide covers the parts, the rules, power and the mistakes that cause most network problems.

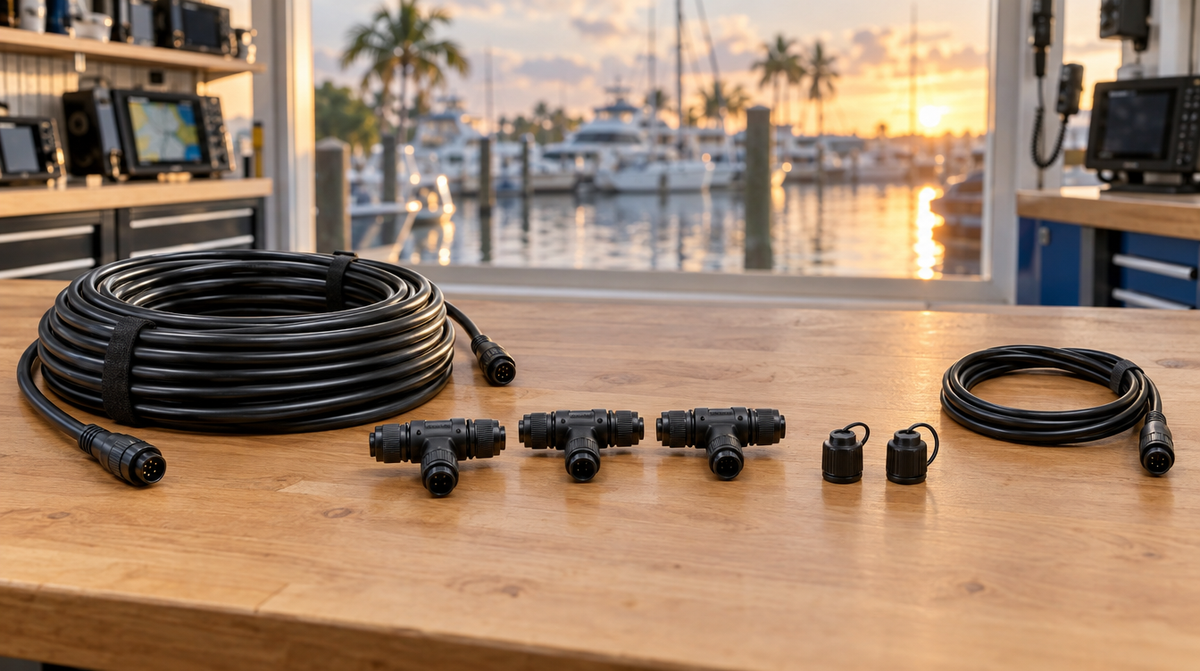

Step 1: Know the parts
| Part | What it does |
|---|---|
| Backbone cable | The main trunk line that runs through the boat |
| Terminators (one male, one female) | Required at both ends of the backbone, they stop signal reflections |
| T-connectors | Inserted in the backbone, one drop port per device (multi-port tees available) |
| Drop cables | Connect each device to a tee |
| Power tee or power cable | Feeds 12V into the backbone through a fuse |
Most brands use the standard Micro-C 5-pin connector. Some brands use their own connectors (such as Raymarine SeaTalkNG or Simrad SimNet) and sell adapter cables to connect to standard NMEA 2000.
Step 2: Follow the network rules
- One backbone, two terminators. No more, no less. A missing or extra terminator is the most common cause of network errors.
- Drops 6 meters (20 feet) or less each, measured from the tee to the device.
- Total of all drops under 78 meters (256 feet).
- Up to 50 devices on one network.
- Distance limit: the length between the farthest points of the network should not exceed 100 meters (328 feet) with standard cable.
- Never daisy-chain devices off each other's drops. Every device gets its own tee.
Step 3: Power the network correctly
The network needs its own 12V supply. Connect a power tee to a switched, fused circuit, typically on the electronics or ignition breaker so the network turns off with the boat. Each device lists a Load Equivalency Number (LEN): one LEN equals 50 milliamps. Add up your devices. On small networks, power anywhere is fine. On long backbones with many devices, feed power near the middle so voltage does not drop too far at the ends.
Some devices, like engines and larger displays, have their own power and draw little or nothing from the network. Check each device's manual.
Step 4: Plan the layout
- List every device that needs to share data: chartplotter, VHF, GPS antenna, AIS, autopilot, heading sensor, engine gateway, depth and speed sensors, fuel and tank senders, stereo.
- Sketch a backbone that runs past all of them, usually from the helm to the transom or engine area.
- Use multi-port tees at the helm where several devices sit together, to keep it neat.
- Leave a spare tee or two for future additions.
- Choose backbone lengths that reach without big coils of excess cable.
Step 5: Avoid common problems
- Loose or wet connectors: hand-tighten the locking rings fully. Water in a connector causes intermittent faults.
- Two networks accidentally joined: if you connect a new network to an existing one, remove the extra terminators.
- Engine data missing: most outboards and inboards need a specific engine gateway or interface cable from the engine maker.
- Software: update device firmware when adding new equipment. Many compatibility issues are fixed in updates.
Step 6: Expand an existing network
Adding a device to a boat that already has NMEA 2000 is usually a five-minute job. Find the backbone, insert a new tee next to an existing one, and run a drop cable to the new device. If there is no room at the helm, add a short backbone extension and a multi-port tee. Before you finish, confirm there are still exactly two terminators, one at each end of the backbone, and that the device shows up in your chartplotter's device list.
Our picks
All in stock at Boat Supplies Direct.
Start a new network
Garmin NMEA 2000 Starter Kit with backbone, tees, terminators and power cable, or the Ancor NMEA 2000 Dual Device Starter Kit.
Backbone cable
Ancor 5M Backbone or Garmin 6M Backbone.
Tees and drops
Ancor Single Tee, the Ancor Four Way Tee for busy helms, and Ancor 2M Drop Cables.
Power and terminators
Ancor Power Cable with Tee, plus spare male and female terminators.
Fuse the power feed properly using our fuse and breaker guide.
Shop all network cables and modules →
Frequently Asked Questions
What do I need to set up an NMEA 2000 network?
A backbone cable, a male and female terminator, a power tee connected to a fused 12V supply, and one T-connector and drop cable for each device. A starter kit includes the basics.
How long can an NMEA 2000 drop cable be?
Each drop cable can be up to 6 meters (20 feet), and all drops combined should stay under 78 meters (256 feet).
How many devices can be on an NMEA 2000 network?
Up to 50 devices on a single network.
Can I mix brands on NMEA 2000?
Yes. That is the point of the standard. Some brands use their own connectors, but adapter cables connect them to a standard NMEA 2000 backbone.
Where should I connect power to NMEA 2000?
To a fused, switched 12V circuit. On long networks with many devices, connect power near the middle of the backbone to limit voltage drop.
Why is my NMEA 2000 network not working?
The most common causes are missing or extra terminators, no power to the backbone, loose or wet connectors, or devices daisy-chained instead of each having its own tee.
This guide is general information. Follow your device manufacturers' installation instructions and network guidelines.
