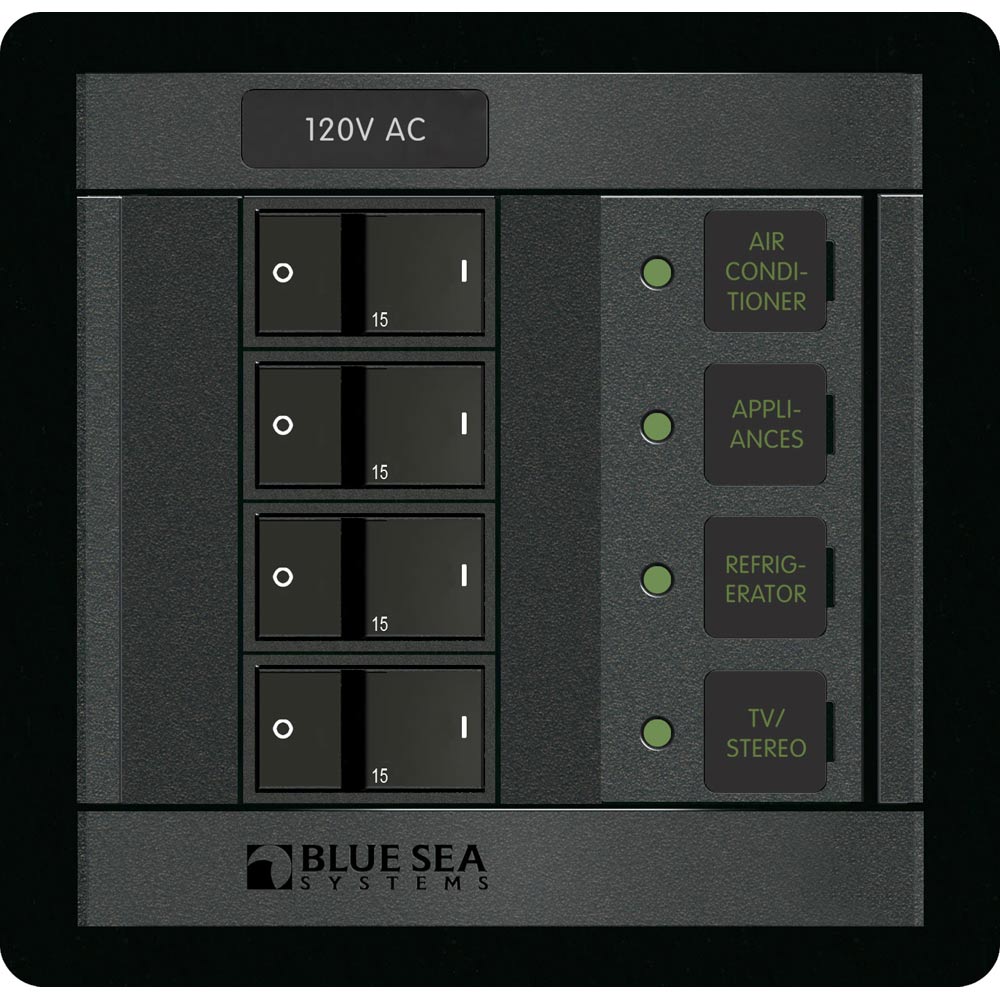

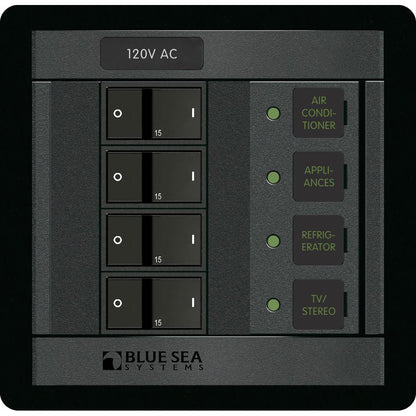

120 Volt AC 4 Position

Features:

• All circuit label positions are backlit

• "ON" indicating LEDs installed in all circuit positions

• Includes 4206-Square Format Label Set

Specifications:

• Positions: 4

• Nominal Voltage: 120V AC

• Maximum Amperage*: 100A

• Height: 4.75" (120.65mm)

• Width: 4.88" (123.95mm)

• Depth: 3.00" (76.2mm)

• Weight: 1.57lb (0.71kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(4) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 4206 - Basic AC Label Kit - 30 Black Square Labels [LABEL]

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: AC
• Box Dimensions: 5"H x 7"W x 9"L WT: 1.36 lbs
• UPC: 632085012106

Quick Guide (pdf)
Owner's Manual (pdf)
