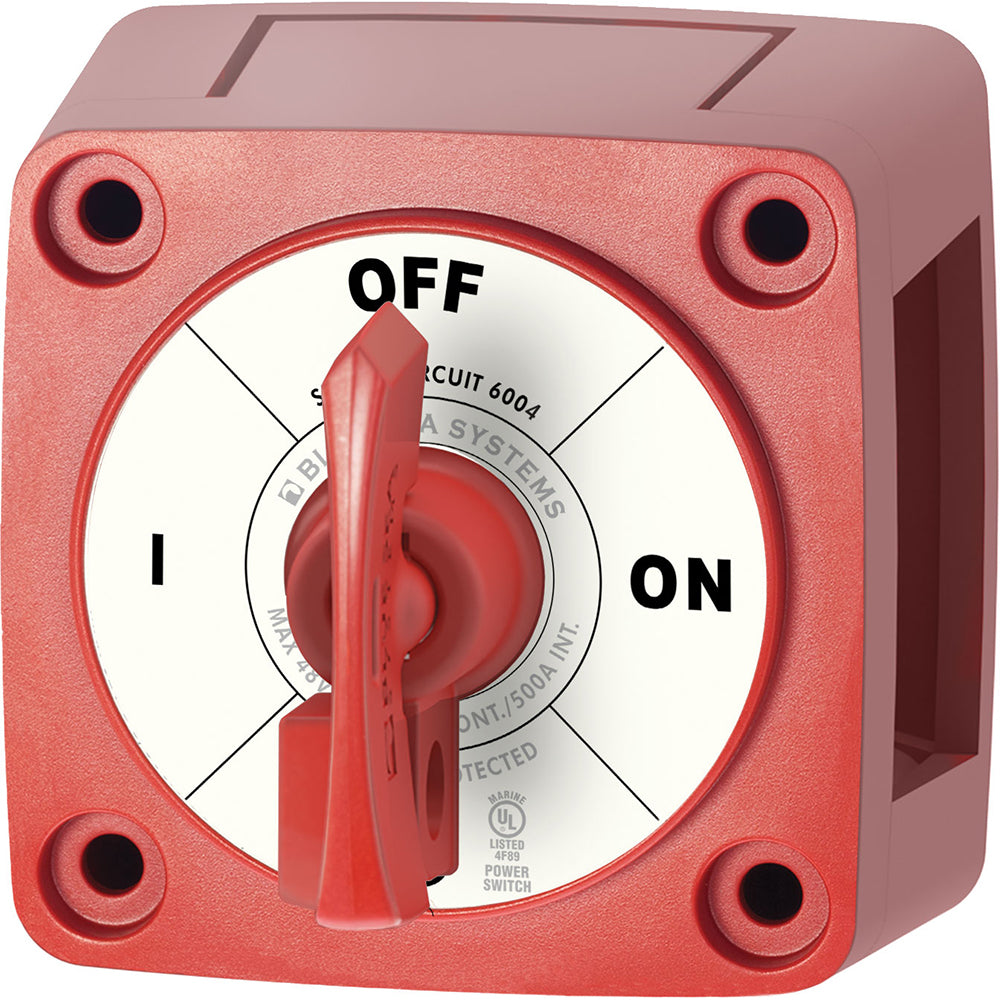

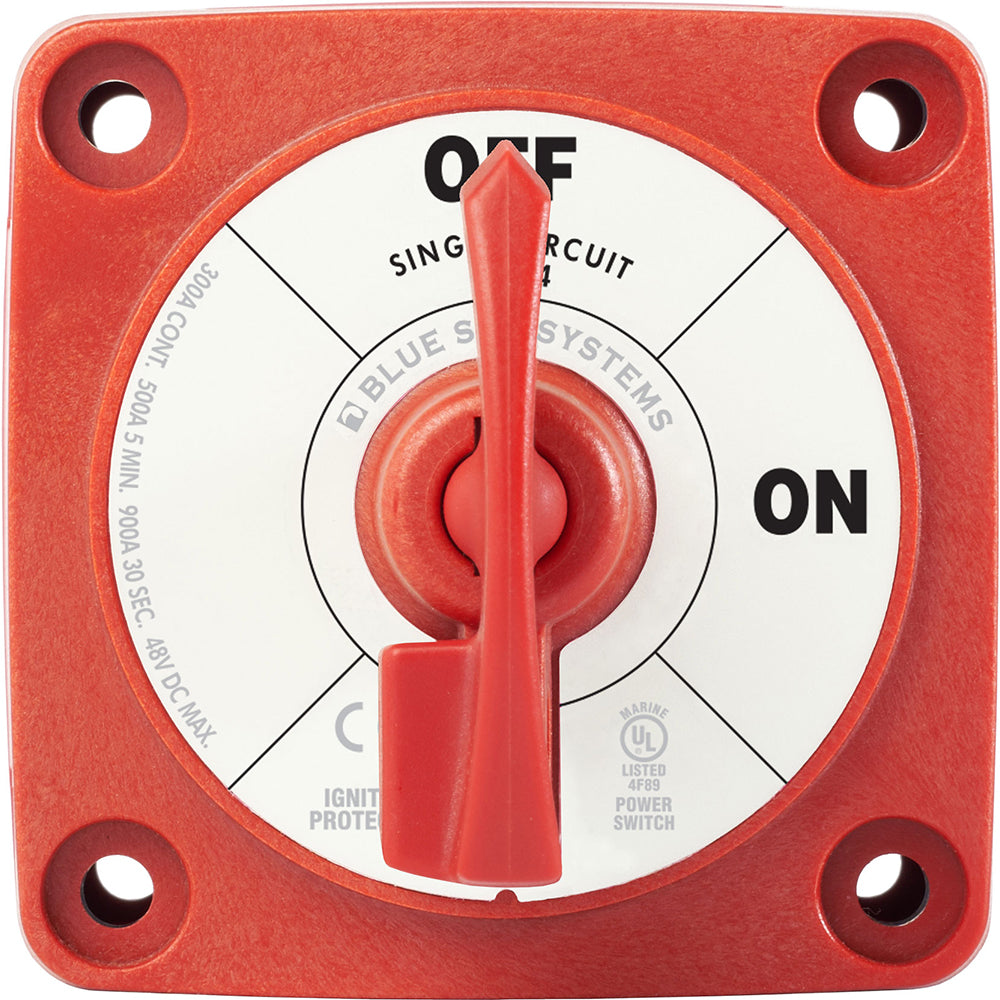

Single Circuit ON-OFF with Locking Key - Red

300 Amps continuous rating for outboards and small gasoline or diesel engines

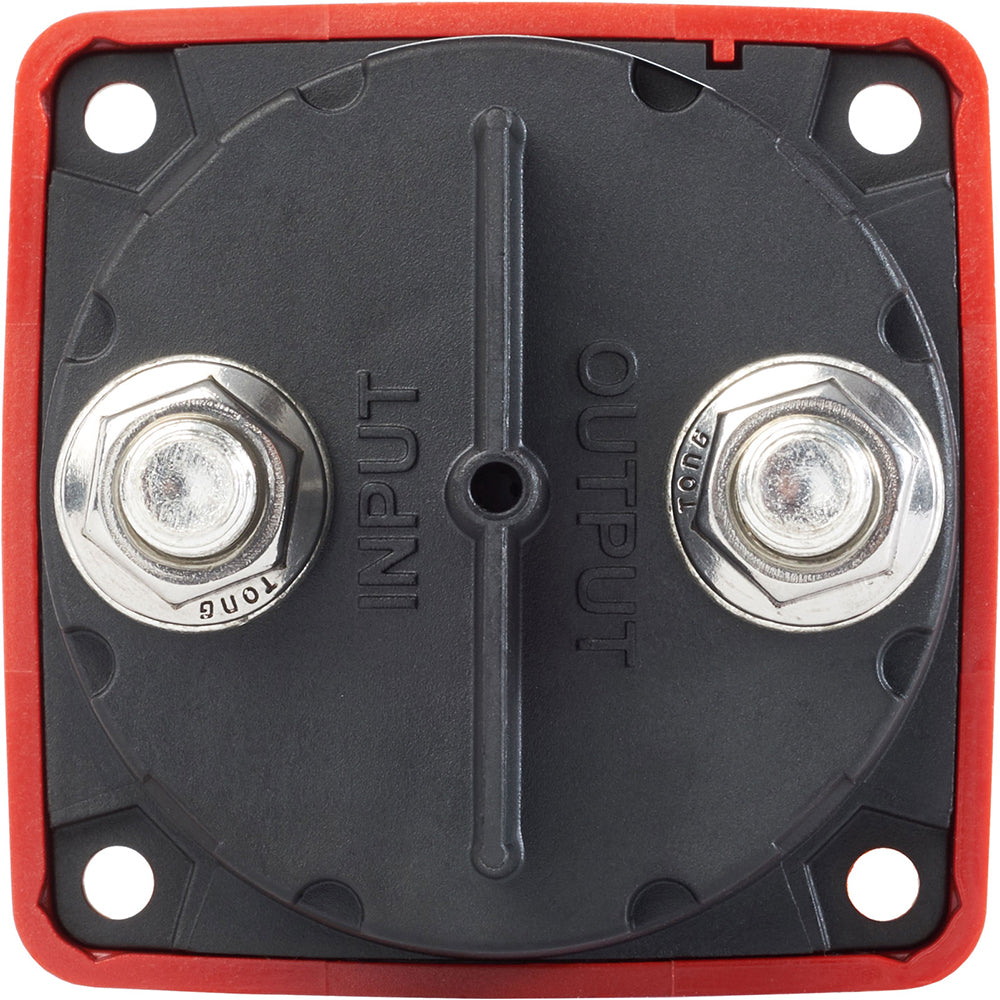

• Tin-plated copper studs for maximum conductivity and corrosion resistance

• Studs accept 3/8" (M10) ring terminals

• 7/8" (22 mm) stud length accepts multiple cable terminals

• Blue Sea Systems one-piece terminal stud design never loosens over time

• One-piece stainless flange nuts ensure safe and secure connections

• Isolating cover protects rear contacts

• Breakout tabs allow wire access in any direction

• Switch Type: Single Circuit ON-OFF

• Color: Red

• Maximum Voltage: 48V DC

• Continuous Rating: 300A

• Intermittent Rating: 500A

• Cranking Rating 30 sec: 900A
