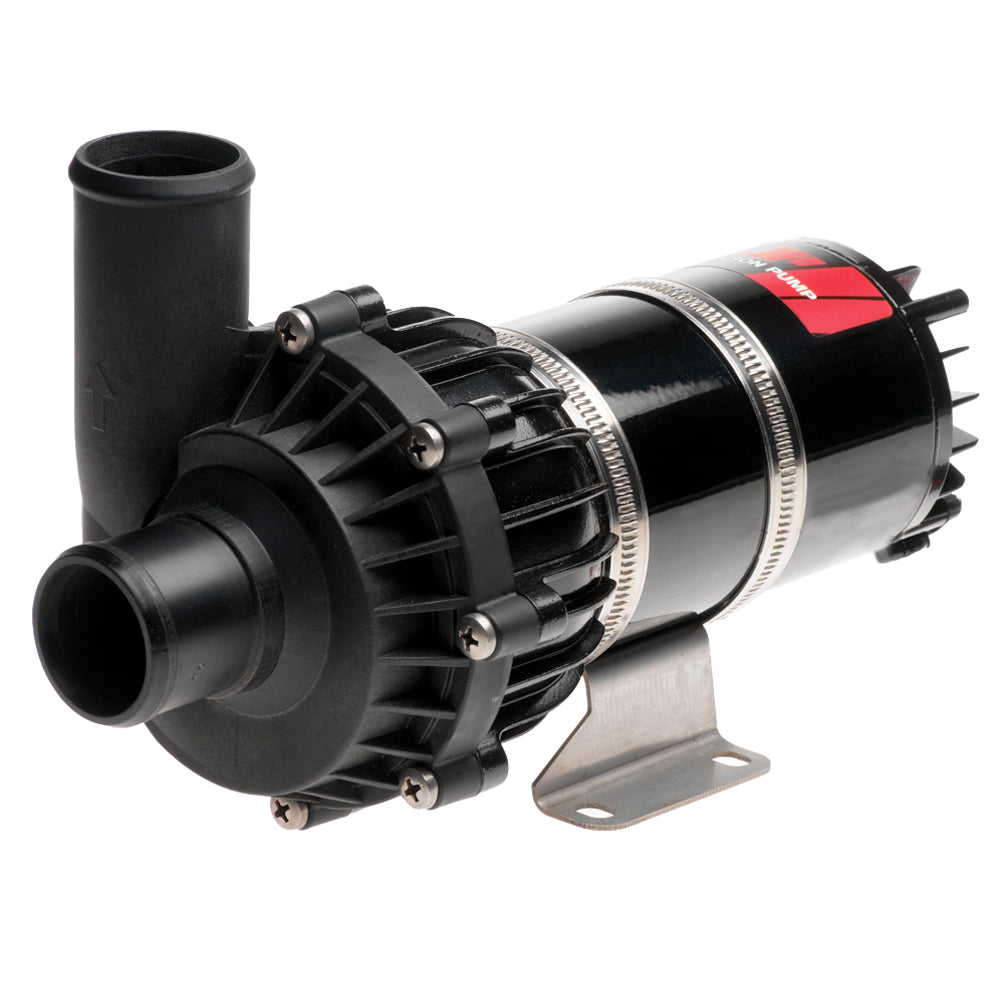

A line of compact magnetic driven centrifugal pumps which combine high flow rates with very low electric current consumption. Suitable for fresh water, ethylene glycol and salt water circulation.
System Pressure: -0.3 to +3.0 bar; stationary max. 4.0 bar Liquid: water/glycol mixture; max. 60% glycol, fresh and salt water Motor Service Life: More than 5,000 hours at nominal voltage 10,000 start/stops. Interchangeable motor. Motor, Voltage: Nominal 13.6V DC for use between 10-16V Nominal 27.2V DC for use between 20-32V Input Power: Max. 125W Dry Running: 30 minutes Dimensions: 244mm (L) x 120mm (W) x 150mm (H) Ports:Ø 20mm (3/4") & Ø 38mm (1-1/2") Weight: 3.0kg (6.6lbs) Body: PPA, glass-fiber reinforced Mounting: Separate universal bracket for flat surfaces
