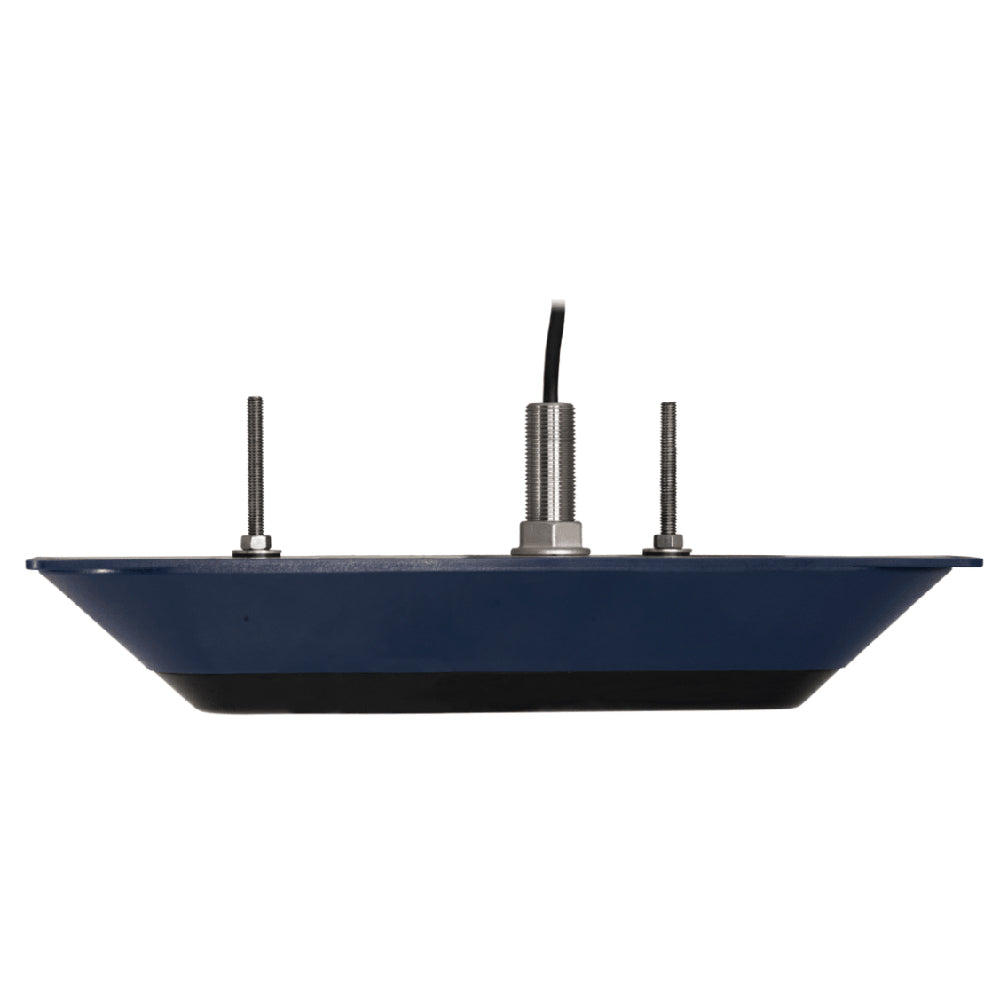

TotalScan Thru Hull Transducer Low/Hi Chirp, DownScan, StructureScan HD

TotalScan thru hull transducer with Low and High CHIRP. Single transducer for flat to hull mounting or fits deadrises up to 5 degrees with fairing block.

The TotalScan™ Transducer allows anglers to access Medium CHIRP, High CHIRP, DownScan™ Imaging and StructureScan™ using only a single transducer.

Features:

• All-in-one transducer featuring Broadband, CHIRP, StructureScan HD and DownScan Imaging™
• Supports 50/200kHz Broadband sonar frequencies
• Supports Low and High CHIRP frequencies
• Supports 455/800kHz StructureScan® frequencies
• Supports Water Temperature

Specifications:

• Temperature: Yes
• Pins: 9
• Mounting Style: Thru-Hull
• Imaging: Standard/Down/Side
• Cable Length (Feet): 24'
• Speed Included: No
• Chirp: Low/High
• Box Dimensions: 7"H x 11"W x 19"L WT: 7.2 lbs
• UPC: 9420024169391
