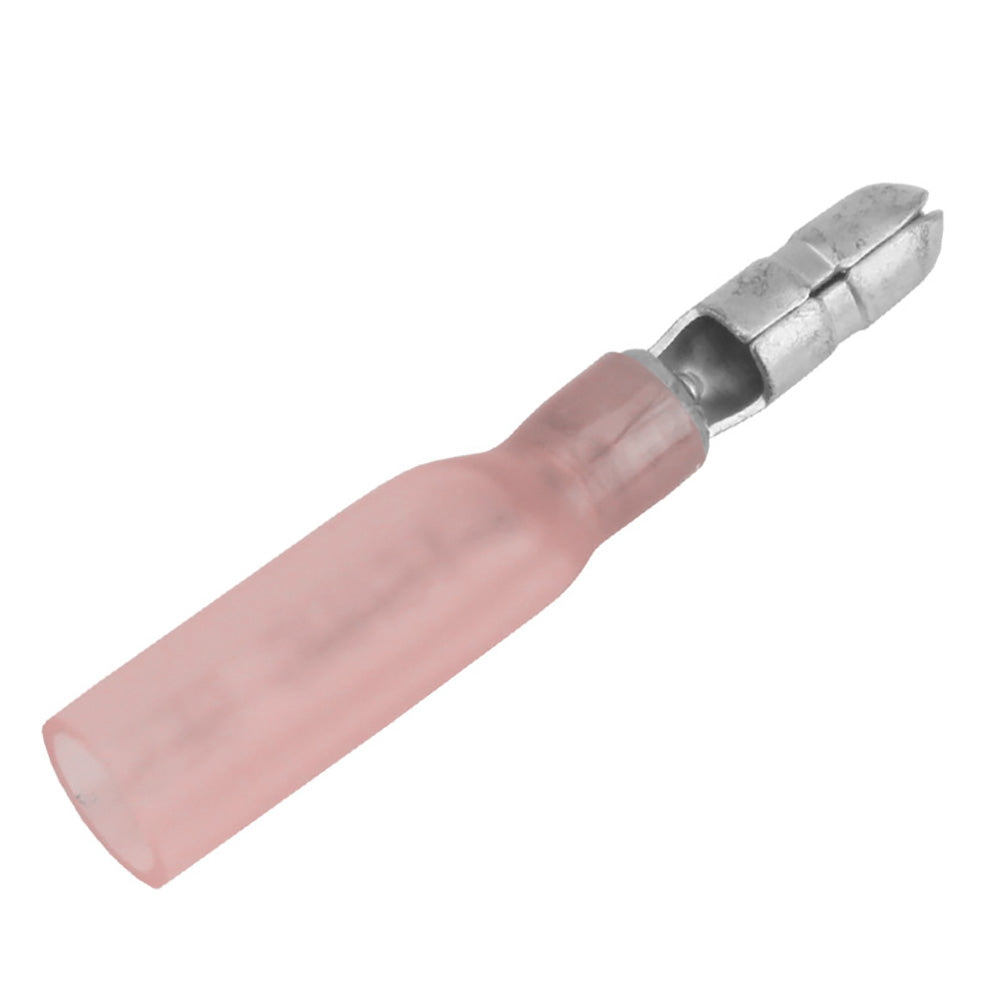

22-18 AWG Heat Shrink Male Bullet Terminal - 25 Pack

Disconnects are a type of terminal intended to be disconnected and reconnected multiple times. This makes them ideal for use where field serviceability is an issue. Disconnects are a great way to protect electrical connections. Whether dealing with mechanical abuse, wire pull-out, or abrasion, they are a solid choice for longevity. Disconnects are sometimes known as quick connects or slip-on connectors.

Features:

• Male bullet terminal
• Protects terminations from water, condensation, salt spray, and corrosion
• Added vibration protection in rugged environments
• Disconnect & reconnectable
• Creates solid connections
• Meets multiple compliances

Benefits:

• Environmentally sealed
• Built for durability
• Tinned Copper
• Long Lasting
• Easy to install

Characteristics:

• Insulation Color: Red
• Wire AWG: 22-18 AWG
• Package Size: Twenty-five included
• Bullet Terminal Size (inch): 0.156"
• Shrink Ratio: Approximately 3:1 at 135 °C
• Operating Temperature: -55 °C - 125 °C
• Volume Resistivity: 1015 Ohm-cm3
• Dielectric Strength: 900-V/mil
• Voltage Rating: 600-V

Specifications:

• Gauge: 22-18 AWG
• Heat Shrink: Yes
• Package Qty: 25
• Type: Disconnects
• Box Dimensions: 1"H x 3"W x 4"L WT: 0.2 lbs
• UPC: 840248207300
