SKU:3202-30-EGI

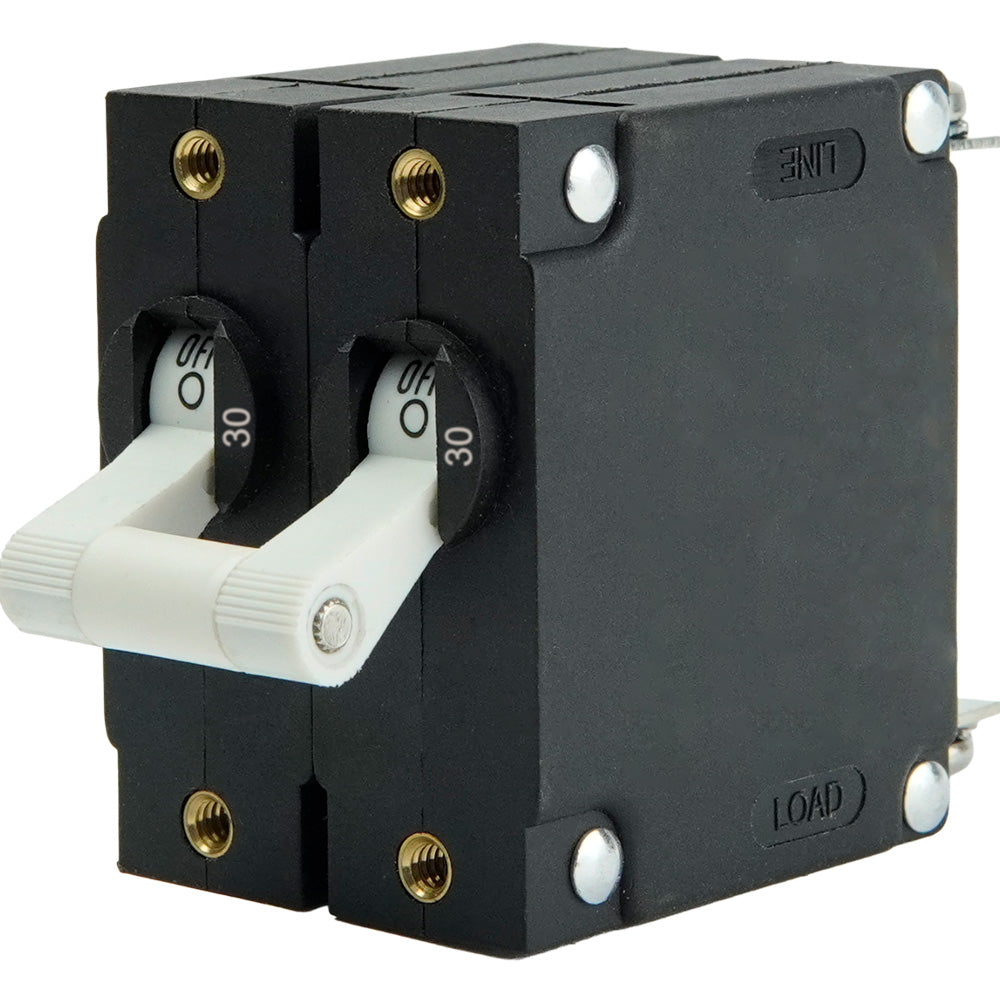

Egis A Series White Toggle Panel Mount Circuit Breaker - Dual Pole 30A
Egis A Series White Toggle Panel Mount Circuit Breaker - Dual Pole 30A
Regular price
$31.99
Sale price
$31.99
Regular price
$37.40
Unit price
/
per
Shipping calculated at checkout.
You save $5.41 (14%)
Free shipping on orders $99+ · $9.95 standard, ships in 1-2 business days
Hurry, only 4 left in stock
Couldn't load pickup availability
- Ships in 1-2 business days from US warehouses
- 30-day returns
- Secure checkout with Shop Pay, Apple Pay and PayPal
- Questions? Contact our team
Egis A Series White Toggle Panel Mount Circuit Breaker - Dual Pole 30A
$31.99
A Series White Toggle Panel Mount Circuit Breaker - Dual Pole 30A
Features:
- Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws.
- AC & DC Rated to cover a wide range of system application needs.
- Toggle-Style Actuator for easy on/off switching control, combined with circuit protection.
- High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications.
- High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current.
- High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power.
- Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots.
Specifications:
- Amperage: 30a
- Type: Electric
- Box Dimensions: 2"H x 4"W x 4"L WT: 0.35 lbs
- UPC: 850067590910
Brochure (pdf)
